512/500 F
51200 Series Single Direction Thrust Ball Bearings

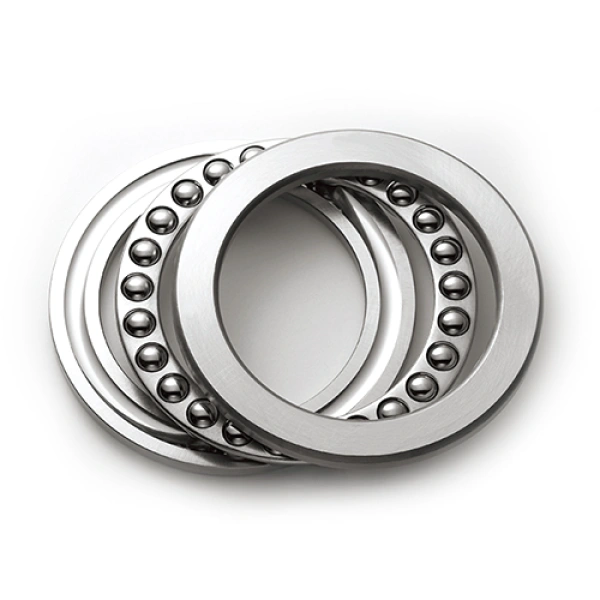

Image may differ from product. See technical specification for details.
Part No.
Part No.
512/500 F
Basic Information
Bearing type
Ball
System of measurement
Metric
Weight
135 kg
Seal type
Open
For load direction
Thrust
Main Dimensions
Bore diameter
500 mm
Bore diameter tolerance
-0.045mm to 0
Outside diameter
670 mm
Outside diameter tolerance
-0.075mm to 0
Width
135 mm
Width tolerance
+0.05mm to -0.5mm
Chamfer dimension
5 mm
Ball & Washer Dimensions
Housing washer inner diameter
506 mm
Shaft washer outer diameter
664 mm
Performance
Temperature range
-30° to 110 °C
Axial dynamic load rating
227250 lbf
Axial static load rating
1530000 lbf
Limiting speed
0.5 X 1000 rpm
Materials
Ring material
52100 Chrome Steel
Ball material
52100 Chrome Steel
Cage material
Stainless Steel
Environment & Compliance
REACH
Compliant
ROHS
Compliant
Technical Drawings
No drawings available at the moment, will be launched soon
In Stock
Price available upon request.
Our sales team will respond within 24 hours with a competitive quote tailored to your requirements.
REQUEST A QUOTE
- Fast delivery
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
512/500 F Bearing Product Overview & Core Advantages
The 512/500 F is a metric thrust ball bearing engineered for applications demanding exceptional axial load capacity and robust construction. Its design is optimized to accommodate heavy thrust loads in a single direction, making it a critical component for high-stress industrial environments. Manufactured from high-grade 52100 Chrome Steel for both rings and balls, this bearing ensures superior durability and consistent performance under demanding operational conditions.
512/500 F Bearing Model Code Explained, Specifications & Naming Convention
| Model Segment | Technical Meaning |
|---|---|
| 512 | Indicates a thrust ball bearing series with a flat seating surface on the shaft washer. |
| 500 | Specifies the bore diameter of 500 mm. |
| F | Signifies a machined brass cage or a pressed steel cage, providing stability and strength for the rolling elements. In this specific bearing, the cage material is Stainless Steel. |
512/500 F Bearing Structural Features & Performance Benefits
- High Axial Load Capacity: Engineered with a large contact angle and robust construction, this bearing delivers an exceptional axial static load rating of 1,530,000 lbf and a dynamic load rating of 227,250 lbf, making it ideal for applications with significant unidirectional thrust forces.
- Precision Ground Components: The rings and balls are precision-ground from 52100 Chrome Steel, ensuring smooth operation, reduced friction, and extended service life.
- Durable Cage Design: The stainless steel cage reliably separates and guides the balls, maintaining optimal alignment and performance, even under high-stress conditions.
- Open Seal Design: The open configuration allows for easy re-lubrication and is suitable for applications where external sealing is provided by the adjacent machine structure.
- Strict Dimensional Tolerances: Features tight dimensional tolerances on the bore diameter, outside diameter, and width, ensuring precise fit and reliable performance in the assembly.
512/500 F Bearing Typical Application Areas
This high-capacity thrust ball bearing is ideally suited for heavy-duty machinery and equipment, including:
- Vertical Pumps and Turbines
- Heavy-Duty Gearboxes
- Crane Hooks and Lifting Equipment
- Extruders and Injection Molding Machines
- Large Industrial Presses
