6800

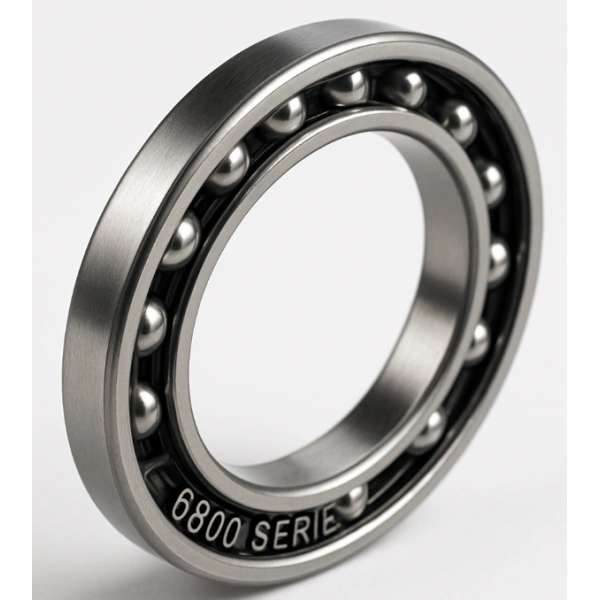

6800 Series Thin Section Bearings
Image may differ from product. See technical specification for details.
Part No.
Part No.
6800
Basic Information
Bearing type
Ball
System of measurement
Metric
Construction
Single Row
Weight
5.6 g
Tolerance class
ABEC-1
Seal type
Open
For load direction
Radial
Main Dimensions
Bore diameter
10 mm
Bore diameter tolerance
-0.008mm to 0
Outside diameter
19 mm
Outside diameter tolerance
-0.009mm to 0
Width
5 mm
Width tolerance
-0.120mm to 0
Performance
Temperature range
-30°C to 110 °C
Radial dynamic load rating
387 lbf
Radial static load rating
189 lbf
Limiting speed
40 X 1000 rpm
Lubrication
Required
Radial internal clearance
0.003mm to 0.018mm
Radial internal clearance
C0
Materials
Ring material
Chrome Steel
Ball material
Chrome Steel
Cage material
Stainless Steel
Environment & Compliance
REACH
Compliant
ROHS
Compliant
Technical Drawings
No drawings available at the moment, will be launched soon
Price:
$ 1.32
/ each
In Stock
- Fast delivery
- Free shipping on orders over $200
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
6800 Bearing Product Overview & Core Advantages
The 6800 is a metric single row deep groove ball bearing engineered for high-performance radial load applications. This precision bearing features an open design, enabling high operational speeds and efficient heat dissipation. Manufactured to ABEC-1 tolerance class, it delivers reliable rotational accuracy and smooth operation. Its compact cross-section, with a 5 mm width, makes it an ideal solution for space-constrained assemblies requiring robust performance.
6800 Bearing Model Code Explained, Specifications & Naming Convention
| Code Segment | Technical Significance |
|---|---|
| 6800 | Standard designation for a metric series single row deep groove ball bearing with a 10mm bore and 19mm outside diameter. |
| Open | No seals or shields, allowing for higher limiting speeds and accessibility for specialized lubrication. |
| C0 | Specifies the standard radial internal clearance group (0.003mm to 0.018mm) for normal operating conditions. |
| ABEC-1 | Indicates the precision class governing dimensional and running accuracy tolerances. |
6800 Bearing Structural Features & Performance Benefits
- High-Speed Capability: The open construction and stainless steel cage minimize friction and drag, enabling a high limiting speed of 40,000 rpm and reducing heat generation.
- Radial Load Capacity: The optimized deep groove raceway and chrome steel construction provide a dynamic load rating of 387 lbf and a static load rating of 189 lbf for reliable performance under significant radial stresses.
- Precision & Stability: Manufactured to ABEC-1 standards with tight bore and OD tolerances, ensuring consistent running accuracy and minimal vibration for smooth operation.
- Versatile Material Compatibility: Components made from chrome steel and a stainless steel cage offer excellent durability and corrosion resistance, suitable for a wide temperature range from -30°C to 110°C.
6800 Bearing Typical Application Areas
This bearing is specified in applications demanding compact size, high speed, and reliable radial load support. Key industries and equipment include:
- Small Electric Motors: Spindle and rotor support in miniature DC motors and fans.
- Precision Instruments: Guidance systems, encoders, and medical devices.
- Office Automation Equipment: High-speed spindles in printers, scanners, and copiers.
- Robotics: Joint and actuator mechanisms in compact robotic arms.
