53201

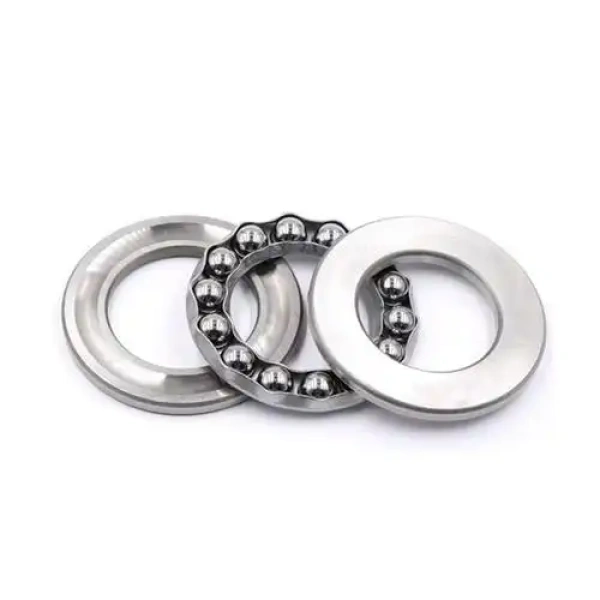

53000 Series Self-Aligning Thrust Ball Bearings
Image may differ from product. See technical specification for details.
Basic Information
Main Dimensions
Ball & Washer Dimensions
Performance
Materials
Environment & Compliance
- Fast delivery
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
53201 Bearing Product Overview & Core Advantages
The 53201 is a metric thrust ball bearing engineered for applications requiring high-precision axial load support. This thrust bearing is characterized by its compact design, featuring a 12 mm bore diameter and an 11.4 mm width, making it ideal for space-constrained assemblies. Manufactured from 52100 Chrome Steel for both rings and balls, it delivers excellent durability and wear resistance. Its primary function is to accommodate thrust loads in a single direction, providing reliable performance in high-speed and high-precision environments. The bearing is ROHS and REACH compliant, ensuring it meets modern environmental and safety standards.
53201 Bearing Model Code Explained, Specifications & Naming Convention
| Code Segment | Technical Meaning |
|---|---|
| 53201 | Basic model number for a metric thrust ball bearing. |
| Open (Seal Type) | The bearing is supplied without seals or shields, allowing for easy re-lubrication and optimal for applications where external sealing is provided. |
53201 Bearing Structural Features & Performance Benefits
- High Load Capacity: Designed to handle significant axial dynamic load ratings of 2992 lbf and axial static load ratings of 4680 lbf, ensuring reliable performance under demanding thrust conditions.
- High-Speed Capability: The use of a stainless steel cage and precision-ground components enables a limiting speed of 11,000 rpm, making it suitable for high-velocity applications.
- Precision Engineering: Features tight dimensional tolerances (e.g., bore diameter tolerance of -0.008mm to 0) for precise fit and smooth operation in high-precision assemblies.
- Robust Material Construction: Components made from 52100 Chrome Steel offer high hardness and corrosion resistance, while the stainless steel cage provides strength and reduced weight.
- Wide Operating Range: Operates effectively within a temperature range of -30°C to 110°C, accommodating various industrial environments.
53201 Bearing Typical Application Areas
- Automotive Systems: Used in transmissions, clutches, and steering mechanisms for managing axial loads.
- Industrial Machinery: Ideal for machine tool spindles, pumps, and compressors where precise axial positioning is critical.
- Aerospace Components: Employed in control systems and actuators requiring high reliability and thrust load capacity.
- Precision Instruments: Suitable for optical devices, medical equipment, and measuring instruments demanding minimal friction and high accuracy.
