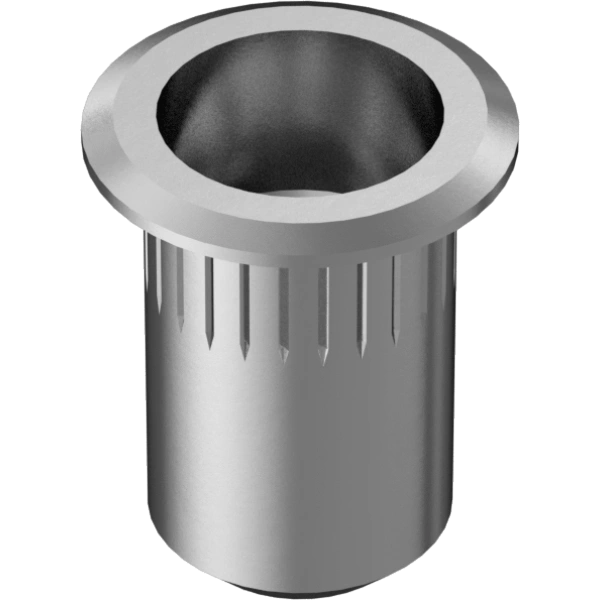

S-97467A693 M8 x 16 mm Rivet Nuts
Rivet Nuts
Image may differ from product. See technical specification for details.
Basic Information
Dimension Parameters
Thread Parameters
Flange Parameters
Material & Strength Parameters
Installation & Application Parameters
Finish & Compliance Parameters
Geometric Parameters
Other Parameters
- Fast delivery
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
Key Features & Benefits at a Glance
- Exceptional corrosion resistance with 18-8 stainless steel construction, ideal for harsh industrial environments
- Superior vibration resistance due to the ribbed body design that prevents rotation after installation
- Reliable thread engagement with Class 6H fit coarse M8x1.25 threads for secure fastening in metal applications
- Enhanced load distribution from the 15mm flange, reducing the risk of material pull-through
- Quick and precise installation compatible with standard 11mm drill bits for material thicknesses from 0.7 to 3mm
- Long-term durability with RoHS 3 compliance, ensuring environmental safety and industrial longevity
- Versatile right-hand open-end design allowing easy access and compatibility with various assembly setups
Professional Applications & Engineering Value
This M8 ribbed rivet nut in 18-8 stainless steel delivers robust performance for metal fabrication, automotive, and machinery assembly. Its coarse 1.25mm pitch threading with Class 6H fit ensures precise, secure connections that resist loosening under vibration—a common challenge in dynamic industrial settings. The ribbed body bites into pre-drilled 11mm holes, providing anti-rotation stability without requiring additional tools. Combined with a 15mm flange, it distributes clamping force evenly, preventing damage to thin materials (0.7–3mm thickness). This design solves critical issues like corrosion and fatigue failure, making it a reliable choice for high-stress applications where durability and compliance with RoHS 3 standards are paramount.
Specification Summary & Compliance
This rivet nut adheres to metric coarse thread standards with M8x1.25 size and Class 6H thread fit for consistent dimensional accuracy. It features an 11mm body diameter, 15mm flange diameter, and 16mm length (12mm installed) to suit material thicknesses of 0.7–3mm. The product is manufactured in compliance with RoHS 3 (2015/863/EU), ensuring it meets stringent environmental and safety regulations for industrial use.
