W 6200-2RS1/VP311
W Series Stainless Steel Bearings

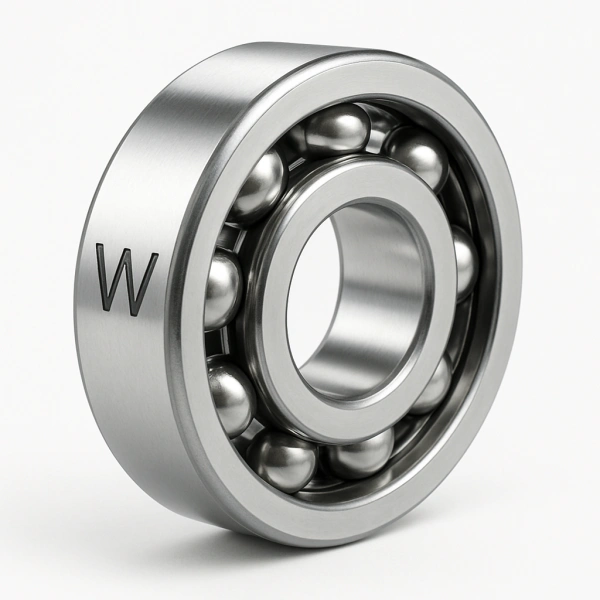

Image may differ from product. See technical specification for details.
Part No.
Part No.
W 6200-2RS1/VP311
Basic Information
Bearing type
Ball
System of measurement
Metric
Construction
Single Row
Weight
0.03 kg
Tolerance class
P0
Seal type
Sealed
For load direction
Radial
Main Dimensions
Bore diameter
10 mm
Bore diameter tolerance
-0.008mm to 0
Outside diameter
30 mm
Outside diameter tolerance
-0.009mm to 0
Width
9 mm
Width tolerance
-0.12mm to 0
Performance
Temperature range
-30° to 120 °C
Radial dynamic load rating
980 lbf
Radial static load rating
522 lbf
Limiting speed
16 X 1000 rpm
Lubrication
Grease
Radial internal clearance
CN
Materials
Ring material
Stainless Steel
Ball material
Stainless Steel
Cage material
Stainless Steel
Environment & Compliance
REACH
Compliant
ROHS
Compliant
Technical Drawings
No drawings available at the moment, will be launched soon
Price:
$ 14.5
/ each
In Stock
- Fast delivery
- Free shipping on orders over $200
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
W 6200-2RS1/VP311 Bearing Product Overview & Core Advantages
The W 6200-2RS1/VP311 is a single row deep groove ball bearing designed for exceptional performance in demanding applications. This precision bearing features a sealed construction and is manufactured entirely from stainless steel, offering excellent corrosion resistance. Its primary advantage lies in its ability to efficiently handle radial loads while maintaining smooth operation. With a P0 tolerance class and pre-lubricated with high-quality grease, it delivers reliable, long-lasting service in a compact and robust package, making it ideal for applications requiring high reliability and low maintenance.
Model Code Breakdown
| Code Segment | Technical Meaning |
|---|---|
| W | Stainless Steel Bearing |
| 6200 | Basic Bearing Series (10mm Bore, 30mm OD, 9mm Width) |
| 2RS1 | Contact Seals on Both Sides |
| VP311 | Specific Grease Filling |
W 6200-2RS1/VP311 Bearing Structural Features & Performance Benefits
- Superior Sealing & Contamination Resistance: The 2RS1 contact seals effectively shield the bearing's internals from contaminants like dust and moisture, significantly extending service life and enabling operation in harsh environments.
- Corrosion Resistance & Clean Operation: Constructed entirely from stainless steel (rings, balls, and cage), this bearing is ideal for applications exposed to water, chemicals, or where cleanliness is paramount, such as in food and beverage or medical equipment.
- Optimized Lubrication for Long Life: Pre-lubricated with VP311 grease, the bearing is ready for immediate use and provides long-term, maintenance-free operation within its specified temperature range of -30°C to 120°C.
- Robust Load Capacity & Smooth Running: The single row deep groove raceway design provides excellent performance under radial dynamic load ratings of 980 lbf, ensuring smooth and reliable rotation.
W 6200-2RS1/VP311 Bearing Typical Application Areas
This versatile bearing is commonly specified in:
- Food and Beverage Processing Machinery
- Medical and Dental Equipment
- Chemical and Pharmaceutical Apparatus
- Agricultural Machinery
- Electrical Motors and Small Gearboxes
- Conveyor Systems
- Marine and Submerged Applications
