SMF105zz
SMF Series Stainless Steel Flanged Miniature Bearings

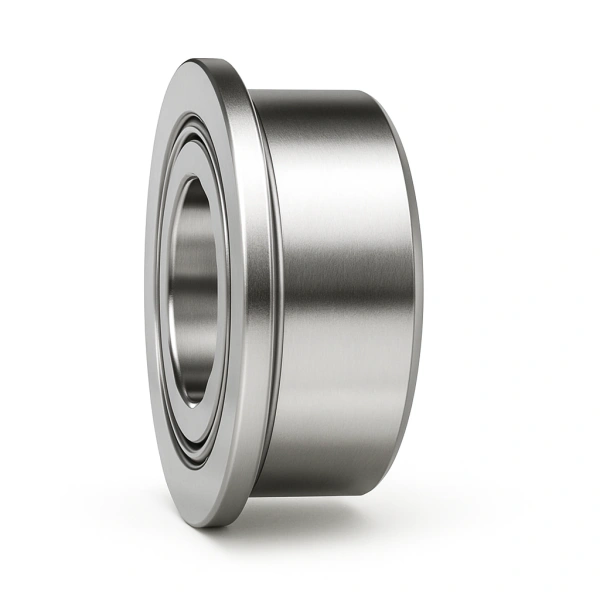

Image may differ from product. See technical specification for details.
Part No.
Part No.
SMF105zz
Basic Information
Bearing type
Ball
System of measurement
Metric
Construction
Single Row
Weight
1.38 g
Tolerance class
ABEC1
Seal type
Shielded
For load direction
Radial
Main Dimensions
Bore diameter
5 mm
Bore diameter tolerance
-0.008mm to 0
Outside diameter
10 mm
Outside diameter tolerance
-0.008mm to 0
Width
4 mm
Width tolerance
-0.12mm to 0
Inner Ring Dimensions
Inner ring type
Standard
Outer Ring Dimensions
Flange outer diameter
11.6 mm
Flange thickness
0.8 mm
Ball & Washer Dimensions
Ball diameter
1.2 mm
Ball quantity
8
Performance
Temperature range
-30° to 110 °C
Radial dynamic load rating
74 lbf
Radial static load rating
27 lbf
Limiting speed
45 X 1000 rpm
Lubrication
Required
Radial internal clearance
0.002mm to 0.013mm
Radial internal clearance
MC3
Materials
Ring material
Stainless Steel
Ball material
Stainless Steel
Cage material
Stainless Steel
Shield material
300 Series Stainless Steel
Environment & Compliance
REACH
Compliant
ROHS
Compliant
Technical Drawings
No drawings available at the moment, will be launched soon
Price:
$ 1.59
/ each
In Stock
- Fast delivery
- Free shipping on orders over $200
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
SMF105zz Bearing Product Overview & Core Advantages
The SMF105zz is a metric miniature ball bearing featuring a single row design and stainless steel construction. Engineered for radial load applications, it offers excellent corrosion resistance and reliable performance in compact spaces. Its shielded (ZZ) design provides effective contamination protection while maintaining low friction, making it ideal for applications demanding high precision and long service life.
SMF105zz Bearing Model Code Explained, Specifications & Naming Convention
| Code Segment | Technical Meaning |
|---|---|
| SMF105 | Bearing series designation, indicating a flanged miniature bearing with a 5 mm bore diameter. |
| zz | Denotes shielded on both sides. This provides protection against contaminants while allowing for high-speed operation compared to contact seals. |
SMF105zz Bearing Structural Features & Performance Benefits
- Compact & Lightweight Design: With dimensions of 5x10x4 mm and a weight of only 1.38 grams, it is perfect for space-constrained applications.
- Enhanced Contamination Protection: The stainless steel shields (ZZ) help retain lubrication and exclude dust and debris, extending bearing life.
- Corrosion Resistance: All components, including rings, balls, and cage, are made from stainless steel, making it suitable for harsh environments and washdown applications.
- Precision Performance: Manufactured to ABEC1 tolerance class with a controlled radial internal clearance (MC3), ensuring smooth and consistent operation.
- Integrated Flange: The flange (outer diameter 11.6 mm) simplifies mounting and positioning, providing secure axial location.
SMF105zz Bearing Typical Application Areas
- Small Precision Motors (e.g., stepper motors, DC motors)
- Medical and Dental Equipment (e.g., handheld tools, pumps)
- Office Automation Equipment (e.g., printers, scanners)
- Robotics and RC Models (e.g., joints, drive wheels)
- Instrumentation and Measurement Devices
