SG047AR0

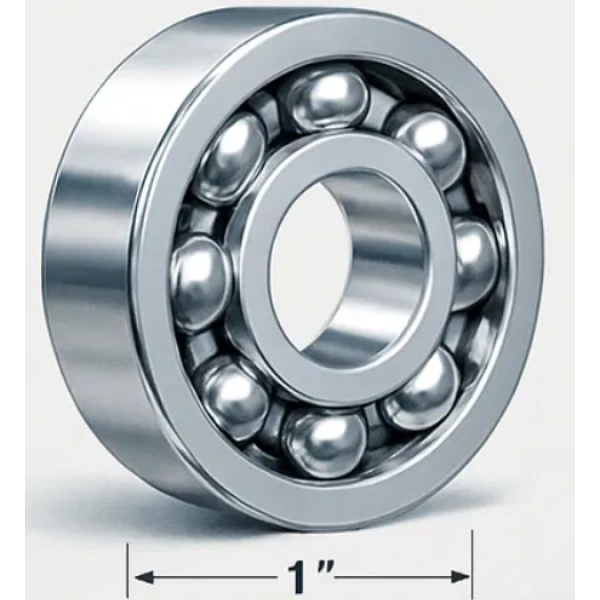

1" Stainless Steel Constant Section Bearings
Image may differ from product. See technical specification for details.
Part No.
Part No.
SG047AR0
Basic Information
Bearing type
Ball
System of measurement
Inch
Thin section bearings type
Reali-Slim Stainless Steel
Construction
Single Row
Weight
4.17 lbs
Tolerance class
ABEC-1
Seal type
Open
For load direction
Angular Contact
Main Dimensions
Bore diameter
4.75"
Bore diameter tolerance
-0.0010"– 0"
Outside diameter
6.75"
Outside diameter tolerance
-0.0008"– 0"
Width
1"
Width tolerance
+.000 –.005"
Contact angle
30 °
Inner Ring Dimensions
Shoulder diameter inner ring
5.492"
Outer Ring Dimensions
Outer ring large-side face inner diameter
6.239"
Outer ring small-side face inner diameter
6.008"
Performance
Temperature range
-30°C to 110 °C
Radial dynamic load rating
6745 lbf
Radial static load rating
10900 lbf
Axial static load rating
14970 lbf
Static load moment
31460 lbf
Lubrication
Lubricated
Radial internal clearance
0.0000 – 0.0005"
Materials
Ring material
Stainless Steel
Ball material
Stainless Steel
Cage material
Brass
Environment & Compliance
ROHS
Compliant
Technical Drawings
No drawings available at the moment, will be launched soon
Price:
$ 414.86
/ each
In Stock
- Fast delivery
- Free shipping on orders over $200
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
SG047AR0 Bearing Product Overview & Core Advantages
The SG047AR0 is a thin-section angular contact ball bearing designed for applications requiring high precision and space optimization. Manufactured from stainless steel with a 30° contact angle, this single-row bearing excels at handling combined loads, supporting significant radial and axial forces simultaneously. Its Reali-Slim design offers a compact cross-section relative to its bore diameter, making it ideal for weight-sensitive and high-rigidity applications. The bearing comes pre-lubricated and is built to ABEC-1 precision tolerances, ensuring reliable performance in demanding environments.
SG047AR0 Bearing Model Code Explained, Specifications & Naming Convention
| Code Segment | Technical Meaning |
|---|---|
| SG | Indicates the bearing series, specifically a thin-section stainless steel bearing. |
| 047 | Specifies the nominal bore diameter in inches (4.75"). |
| A | Denotes the 30° contact angle, optimized for handling high axial loads. |
| R0 | Specifies the radial internal clearance group (0.0000" – 0.0005"). |
| Open (Seal Type) | No seals or shields, allowing for higher speeds and easy re-lubrication, but requiring a clean operating environment. |
SG047AR0 Bearing Structural Features & Performance Benefits
- High Rigidity & Load Capacity: The single-row angular contact design with a 30° contact angle provides excellent resistance to combined radial and axial loads, supported by high static load ratings (10,900 lbf radial, 14,970 lbf axial).
- Precision Engineering: Manufactured to ABEC-1 tolerance class with a tight radial internal clearance, ensuring smooth operation and accurate rotational performance.
- Corrosion Resistance & Durability: Constructed entirely from stainless steel (rings and balls) with a brass cage, offering superior corrosion resistance and longevity in harsh environments.
- Space-Saving Design: The Reali-Slim thin-section construction (1" width) maximizes the bore size while minimizing cross-section, ideal for compact machinery layouts.
SG047AR0 Bearing Typical Application Areas
- Robotics and Automation: Rotary joints, robotic arms, and precision positioning systems.
- Aerospace & Defense: Guidance systems, radar platforms, and actuation mechanisms.
- Medical Equipment: MRI and CT scanner gantries, surgical robot joints.
- Semiconductor Manufacturing: Wafer handling robots and precision stages.
- Optical and Instrumentation: High-precision rotary tables and measuring devices.
