SFR0

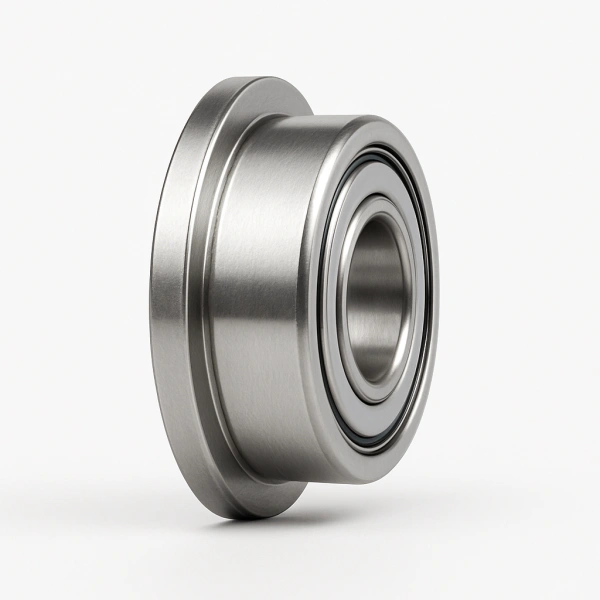

SFR Series Stainless Steel Flanged Miniature Bearings
Image may differ from product. See technical specification for details.
Part No.
Part No.
SFR0
Basic Information
Bearing type
Ball
System of measurement
Inch
Construction
Single Row
Weight
0.12 g
Tolerance class
ABEC1
Seal type
Open
For load direction
Radial
Main Dimensions
Bore diameter
0.046875"
Bore diameter tolerance
-0.0003" to 0"
Outside diameter
0.15625"
Outside diameter tolerance
-0.0003" to 0"
Width
0.0625"
Width tolerance
-0.005" to 0"
Inner Ring Dimensions
Inner ring type
Standard
Outer Ring Dimensions
Flange outer diameter
0.203"
Flange thickness
0.013"
Ball & Washer Dimensions
Ball diameter
0.0236"
Ball quantity
7
Performance
Temperature range
-86 to 230 °F
Radial dynamic load rating
19 lbf
Radial static load rating
5 lbf
Limiting speed
99 X 1000 rpm
Lubrication
Required
Radial internal clearance
0.00008" to 0.0005"
Radial internal clearance
MC3
Materials
Ring material
Stainless Steel
Ball material
Stainless Steel
Cage material
Stainless Steel
Environment & Compliance
REACH
Compliant
ROHS
Compliant
Technical Drawings
No drawings available at the moment, will be launched soon
Price:
$ 19.4
/ each
In Stock
- Fast delivery
- Free shipping on orders over $200
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
SFR0 Bearing Product Overview & Core Advantages
The SFR0 is a miniature single row deep groove ball bearing engineered for precision applications requiring compact design and reliable performance. Manufactured entirely from stainless steel, it offers excellent corrosion resistance. This bearing is designed to handle primarily radial loads and is characterized by its open design, which allows for versatile lubrication options. Its small size, high limiting speed of 99,000 rpm, and ABEC1 precision make it ideal for high-speed, compact mechanisms demanding consistent operation.
SFR0 Bearing Model Code Explained, Specifications & Naming Convention
| Code Segment | Technical Meaning |
|---|---|
| SFR0 | Indicates a specific series of miniature, stainless steel, deep groove ball bearings. |
| Open (No Seal/Shield suffix) | The bearing has no integral seals or shields, allowing for maximum speed and custom lubrication but requiring a clean operating environment. |
SFR0 Bearing Structural Features & Performance Benefits
- All-Stainless Steel Construction: The rings, balls, and cage are made from stainless steel, providing superior corrosion resistance and suitability for harsh environments or washdown applications.
- High-Speed Capability: The open design and precision ABEC1 tolerance minimize friction and heat generation, enabling a high limiting speed for its size class.
- Precision Performance: Manufactured to ABEC1 tolerance class with a controlled radial internal clearance (MC3), ensuring smooth and quiet operation with minimal runout.
- Compact and Lightweight: With a bore diameter of just 0.046875" and a weight of only 0.12g, it is designed for space-constrained and weight-sensitive applications.
SFR0 Bearing Typical Application Areas
This bearing is ideally suited for:
- Small Precision Motors and stepper motors
- Medical Devices and dental handpieces
- Optical Encoders and instrumentation
- RC Models and drones
- Office automation equipment and small gearboxes
