SF63800

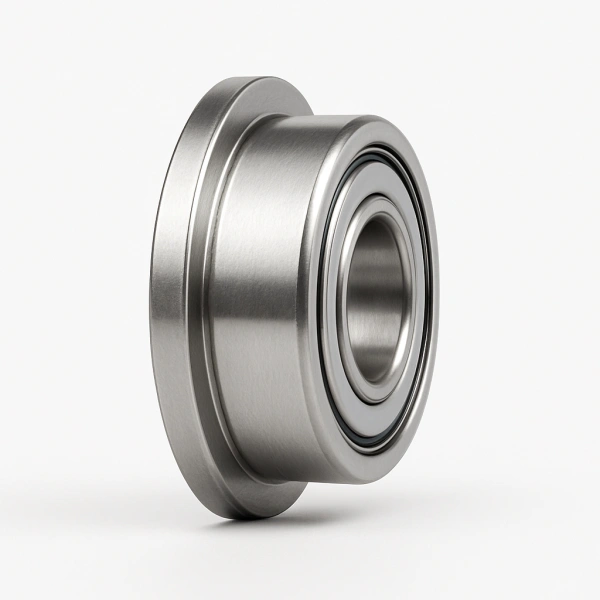

SF Series Stainless Steel Flanged Bearings
Image may differ from product. See technical specification for details.
Basic Information
Main Dimensions
Inner Ring Dimensions
Outer Ring Dimensions
Ball & Washer Dimensions
Performance
Materials
Environment & Compliance
- Fast delivery
- Free shipping on orders over $200
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
SF63800 Bearing Product Overview & Core Advantages
The SF63800 is a metric miniature flanged ball bearing designed for compact applications requiring high precision and reliable performance. As a single row deep groove ball bearing with an integrated flange, it excels in providing stable radial load support and simplified mounting. Constructed entirely from corrosion-resistant materials, this bearing is ideal for applications demanding high rigidity and dimensional stability in confined spaces. Its open design allows for versatile lubrication options to meet specific operational requirements.
SF63800 Bearing Model Code Explained, Specifications & Naming Convention
| Code Segment | Technical Meaning |
|---|---|
| SF63800 | Basic bearing designation indicating specific bearing dimensions (10mm bore, 19mm OD) |
| Flanged | Integrated mounting flange for simplified installation and axial location |
| Open | No seals or shields, allowing for custom lubrication and high-speed operation |
SF63800 Bearing Structural Features & Performance Benefits
Flanged Design Advantage: The integrated flange provides exceptional mounting stability and precise axial positioning, reducing installation complexity and improving overall system rigidity.
Premium Material Construction: Manufactured with stainless steel rings and cage combined with chrome steel balls, this bearing offers excellent corrosion resistance while maintaining high load capacity and durability.
Optimized Internal Geometry: Features 10 precision balls with 2.381mm diameter, ensuring smooth operation and efficient load distribution. The ABEC-1 tolerance class guarantees consistent performance for most industrial applications.
High-Speed Capability: With a limiting speed of 30,600 rpm, this precision bearing is suitable for high-rotation applications while maintaining stable operation.
SF63800 Bearing Typical Application Areas
- Small precision motors and miniature drive systems
- Medical devices and laboratory equipment requiring corrosion resistance
- Optical instruments and positioning mechanisms
- Office automation equipment including printers and scanners
- Robotic joints and small automation components
- Electronic equipment with space constraints
