SF627 2rs
SF Series Stainless Steel Flanged Miniature Bearings

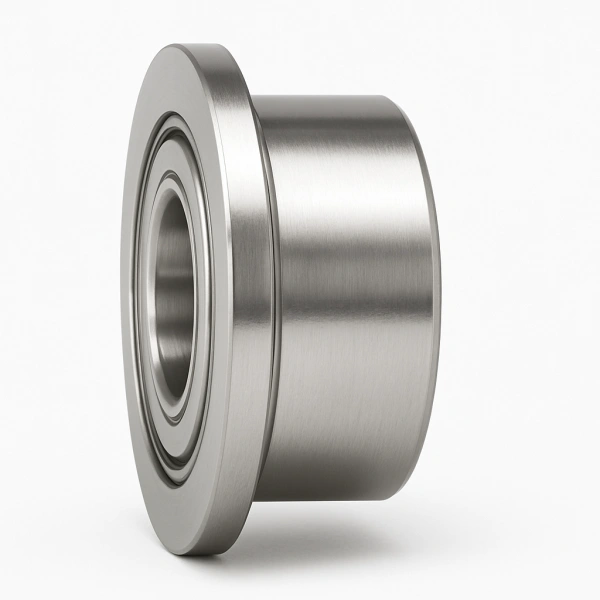

Image may differ from product. See technical specification for details.
Part No.
Part No.
SF627 2rs
Basic Information
Bearing type
Ball
System of measurement
Metric
Construction
Single Row
Weight
14.4 g
Tolerance class
ABEC1
Seal type
Sealed
For load direction
Radial
Main Dimensions
Bore diameter
7 mm
Bore diameter tolerance
-0.008mm to 0
Outside diameter
22 mm
Outside diameter tolerance
-0.008mm to 0
Width
7 mm
Width tolerance
-0.12mm to 0
Inner Ring Dimensions
Inner ring type
Standard
Outer Ring Dimensions
Flange outer diameter
25 mm
Flange thickness
1.5 mm
Ball & Washer Dimensions
Ball diameter
3.969 mm
Ball quantity
7
Performance
Temperature range
-30° to 110 °C
Radial dynamic load rating
566 lbf
Radial static load rating
223 lbf
Limiting speed
27 X 1000 rpm
Lubrication
Required
Radial internal clearance
0.002mm to 0.013mm
Radial internal clearance
MC3
Materials
Ring material
Stainless Steel
Ball material
Stainless Steel
Cage material
Stainless Steel
Shield material
Nitrile Rubber
Environment & Compliance
REACH
Compliant
ROHS
Compliant
Technical Drawings
No drawings available at the moment, will be launched soon
Price:
$ 1.59
/ each
In Stock
- Fast delivery
- Free shipping on orders over $200
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
SF627 2rs Bearing Product Overview & Core Advantages
The SF627 2RS is a metric single row deep groove ball bearing designed for exceptional reliability in demanding applications. Featuring stainless steel construction throughout its rings, balls, and cage, it offers superior corrosion resistance. Its key advantage lies in the integrated rubber seals (2RS) on both sides, which effectively retain lubrication and exclude contaminants, making it a robust, maintenance-free solution for applications requiring long service life and consistent performance under radial loads.
SF627 2rs Bearing Model Code Explained, Specifications & Naming Convention
| Code Segment | Technical Meaning |
|---|---|
| SF627 | Basic bearing designation indicating specific bearing dimensions (7mm bore, 22mm OD, 7mm width). |
| 2RS | Denotes contact rubber seals on both sides of the bearing for superior protection against contamination and grease leakage. |
SF627 2rs Bearing Structural Features & Performance Benefits
- Robust Sealing: The Nitrile Rubber (NBR) seals (2RS) provide excellent exclusion of contaminants like dust and moisture, while effectively retaining the lubricant. This design significantly enhances bearing life in harsh environments and supports a maintenance-free operational philosophy.
- Full Stainless Steel Construction: Manufactured from stainless steel for the rings, balls, and cage, this bearing offers high corrosion resistance, making it ideal for applications exposed to water, chemicals, or washdowns.
- Optimized Internal Geometry: The deep groove raceway and the complement of seven precision balls enable efficient handling of radial dynamic loads up to 566 lbf and facilitate smooth, quiet operation.
- Standard ABEC1 Precision: Manufactured to ABEC1 tolerance class, ensuring reliable performance for a wide range of industrial applications with consistent running accuracy.
SF627 2rs Bearing Typical Application Areas
- Food and Beverage Processing Equipment
- Medical and Laboratory Devices
- Chemical Handling Pumps and Mixers
- Agricultural Machinery
- Electric Motors and Small Gearboxes
- Conveyor System Rollers
