SF040AR0

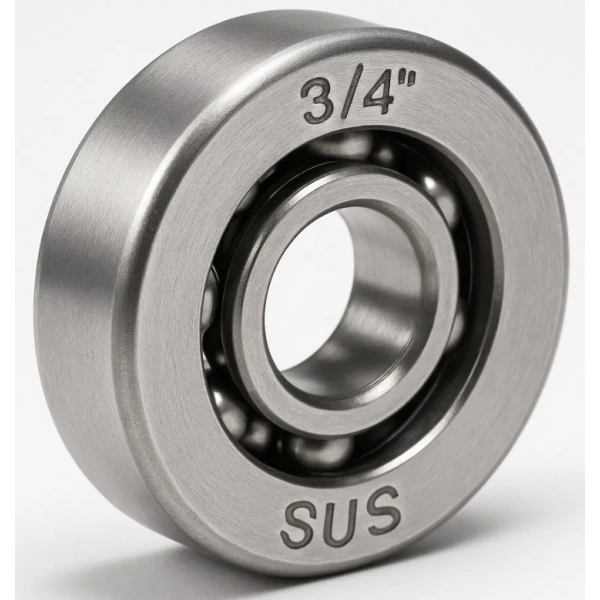

3/4" Stainless Steel Constant Section Bearings
Image may differ from product. See technical specification for details.
Part No.
Part No.
SF040AR0
Basic Information
Bearing type
Ball
System of measurement
Inch
Thin section bearings type
Reali-Slim Stainless Steel
Construction
Single Row
Weight
1.92 lbs
Tolerance class
ABEC-1
Seal type
Open
For load direction
Angular Contact
Main Dimensions
Bore diameter
4"
Bore diameter tolerance
-0.0008"– 0"
Outside diameter
5.5"
Outside diameter tolerance
-0.0006"– 0"
Width
0.75"
Width tolerance
+.000 –.005"
Contact angle
30 °
Inner Ring Dimensions
Shoulder diameter inner ring
4.555"
Outer Ring Dimensions
Outer ring large-side face inner diameter
5.115"
Outer ring small-side face inner diameter
4.945"
Performance
Temperature range
-30°C to 110 °C
Radial dynamic load rating
3736 lbf
Radial static load rating
6350 lbf
Axial static load rating
8420 lbf
Static load moment
18340 lbf
Lubrication
Lubricated
Radial internal clearance
0.0000 – 0.0005"
Materials
Ring material
Stainless Steel
Ball material
Stainless Steel
Cage material
Brass
Environment & Compliance
ROHS
Compliant
Technical Drawings
No drawings available at the moment, will be launched soon
Price:
$ 300.21
/ each
In Stock
- Fast delivery
- Free shipping on orders over $200
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
SF040AR0 Bearing Product Overview & Core Advantages
The SF040AR0 is a high-performance thin section angular contact ball bearing engineered for applications demanding precision, space efficiency, and reliable operation under combined loads. Manufactured from stainless steel with a brass cage, this single-row bearing is designed to accommodate significant axial loads in one direction while simultaneously handling radial loads, thanks to its 30° contact angle. Its ABEC-1 precision class and consistent dimensional stability make it an ideal choice for high-reliability, compact assemblies where weight and cross-section are critical constraints.
SF040AR0 Bearing Model Code Explained, Specifications & Naming Convention
The model number SF040AR0 can be broken down as follows:
- SF: Indicates the Reali-Slim thin-section bearing series.
- 040: Specifies the nominal bore diameter of 4 inches.
- A: Denotes the Angular Contact design with a 30° contact angle.
- R0: Signifies an Open (unsealed) construction and standard radial internal clearance.
SF040AR0 Bearing Structural Features & Performance Benefits
- High Load Capacity & Rigidity: The angular contact design and stainless steel construction provide high rigidity, enabling the bearing to support substantial combined radial and axial static loads (6350 lbf radial, 8420 lbf axial).
- Precision & Stability: Built to ABEC-1 tolerance standards with tight bore, OD, and width tolerances, ensuring precise fitment and smooth, accurate rotation in precision instruments.
- Space & Weight Optimization: As part of the Reali-Slim series, it features an extremely thin cross-section (0.75" width for a 4" bore), offering significant space and weight savings (1.92 lbs) without sacrificing performance.
- Corrosion Resistance & Durability: The use of stainless steel for rings and balls provides excellent corrosion resistance, making it suitable for harsh environments and extending service life.
- Wide Operating Range: The standard lubrication and material selection allow for a functional temperature range from -30°C to 110°C.
SF040AR0 Bearing Typical Application Areas
This bearing is ideally suited for applications requiring a compact, high-precision, and corrosion-resistant solution for managing combined loads. Key industries and equipment include:
- Robotics: Joint and actuator bearings.
- Aerospace & Defense: Gimbals, control mechanisms, and radar systems.
- Medical Equipment: Surgical robots, imaging devices (CT/MRI scanners), and diagnostic instruments.
- Semiconductor Manufacturing: Precision stages and wafer handling equipment.
- Optical and Scanning Systems: Rotary encoders and precision positioning tables.
