SET2216

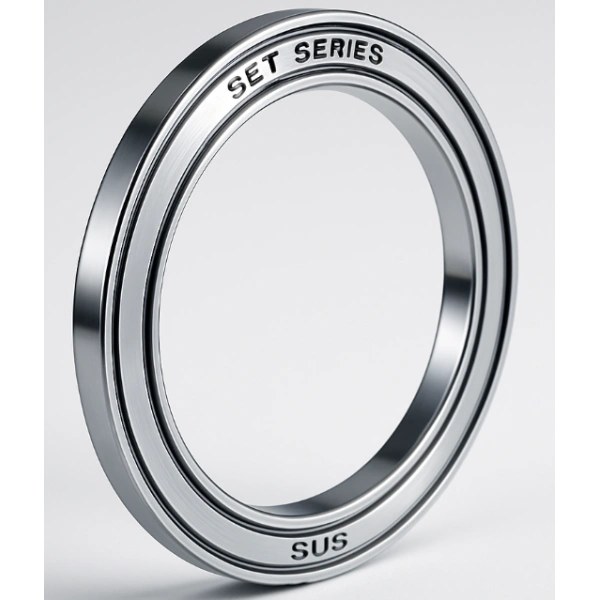

SET Series Stainless Steel Thin Section Bearings
Image may differ from product. See technical specification for details.
Part No.
Part No.
SET2216
Basic Information
Bearing type
Ball
System of measurement
Metric
Construction
Single Row
Weight
3.04 g
Tolerance class
ABEC-1
Seal type
Open
For load direction
Radial
Main Dimensions
Bore diameter
16 mm
Bore diameter tolerance
-0.008mm to 0
Outside diameter
22 mm
Outside diameter tolerance
-0.009mm to 0
Width
4 mm
Width tolerance
-0.120mm to 0
Performance
Temperature range
-86 to 230 °F
Radial dynamic load rating
196 lbf
Radial static load rating
125 lbf
Limiting speed
9 X 1000 rpm
Lubrication
Required
Radial internal clearance
0.003mm to 0.018mm
Radial internal clearance
C0
Materials
Ring material
Stainless Steel
Ball material
Stainless Steel
Cage material
Stainless Steel
Environment & Compliance
REACH
Compliant
ROHS
Compliant
Technical Drawings
No drawings available at the moment, will be launched soon
Price:
$ 8.33
/ each
In Stock
- Fast delivery
- Free shipping on orders over $200
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
SET2216 Bearing Product Overview & Core Advantages
The SET2216 is a metric single row deep groove ball bearing engineered for precision radial load applications. Constructed entirely from stainless steel, it offers excellent corrosion resistance and reliable performance. Its compact design, with a 4mm width, makes it ideal for space-constrained assemblies requiring high precision and consistent operation within the ABEC-1 tolerance class.
SET2216 Bearing Model Code Explained, Specifications & Naming Convention
The model number SET2216 breaks down as follows:
- SET: Manufacturer's series prefix.
- 22: Outside Diameter code (22 mm).
- 16: Bore Diameter code (16 mm).
- Seal Type: Open - Requires external sealing for contaminated environments.
- Tolerance Class: ABEC-1 - Defines standard precision grade.
- Radial Internal Clearance: C0 - Standard clearance group for general applications.
- Lubrication: Required - Must be lubricated for operation.
SET2216 Bearing Structural Features & Performance Benefits
- All-Stainless-Steel Construction: The rings, balls, and cage are made from stainless steel, providing superior corrosion resistance and durability, suitable for a wide temperature range from -86 to 230 °F.
- Radial Load Capacity: As a single row deep groove ball bearing, it is primarily designed to support significant radial dynamic loads (196 lbf) and radial static loads (125 lbf) efficiently.
- Precision & High-Speed Operation: Manufactured to ABEC-1 standards, it ensures smooth running and is capable of a limiting speed of 9,000 rpm, making it suitable for various high-speed applications.
- Compact & Lightweight: With a minimal cross-section (4mm width) and a weight of just 3.04g, it enables lightweight and compact design solutions.
SET2216 Bearing Typical Application Areas
This bearing is commonly specified in:
- Precision instruments and optical devices
- Small electric motors and miniature gearboxes
- Medical equipment and dental handpieces
- Food processing machinery (where corrosion resistance is critical)
- Office automation equipment and robotics
