SD047CP0

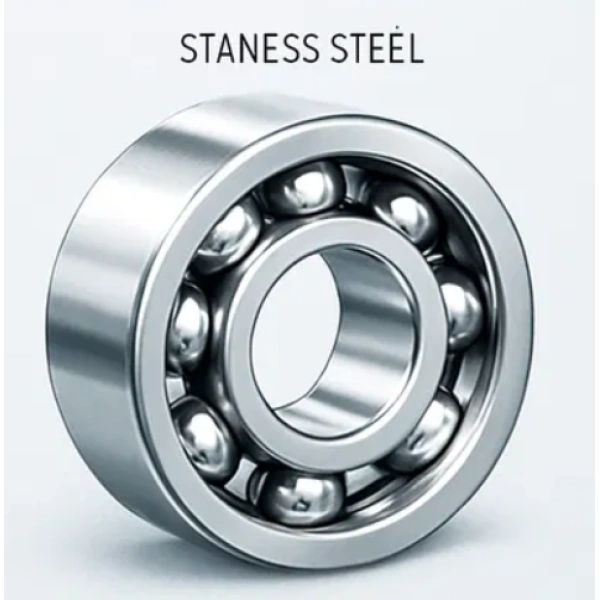

1/2" Stainless Steel Constant Section Bearings
Image may differ from product. See technical specification for details.
Part No.
Part No.
SD047CP0
Basic Information
Bearing type
Ball
System of measurement
Inch
Thin section bearings type
Reali-Slim Stainless Steel
Construction
Single Row
Weight
0.94 lbs
Tolerance class
ABEC-1
Seal type
Open
For load direction
Radial
Main Dimensions
Bore diameter
4.75"
Bore diameter tolerance
-0.0010"– 0"
Outside diameter
5.75"
Outside diameter tolerance
-0.0008"– 0"
Width
0.5"
Width tolerance
+.000 –.005"
Inner Ring Dimensions
Shoulder diameter inner ring
5.12"
Outer Ring Dimensions
Outer ring small-side face inner diameter
5.38"
Performance
Temperature range
-30°C to 110 °C
Radial dynamic load rating
1892 lbf
Radial static load rating
3530 lbf
Lubrication
Lubricated
Radial internal clearance
0.0000 – 0.0005"
Materials
Ring material
Stainless Steel
Ball material
Stainless Steel
Cage material
Brass
Environment & Compliance
ROHS
Compliant
Technical Drawings
No drawings available at the moment, will be launched soon
Price:
$ 224.08
/ each
In Stock
- Fast delivery
- Free shipping on orders over $200
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
SD047CP0 Bearing Product Overview & Core Advantages
The SD047CP0 is a Reali-Slim Stainless Steel single row ball bearing designed for applications demanding compact cross-sections and corrosion resistance. This thin section bearing features a large 4.75" bore within a minimal 0.5" width, offering a high load capacity relative to its size. Its stainless steel construction ensures reliable performance in harsh environments, while its ABEC-1 precision and optimized radial dynamic load rating of 1892 lbf make it a robust and precise solution for space-constrained, high-performance machinery.
SD047CP0 Bearing Model Code Explained, Specifications & Naming Convention
| Code Segment | Technical Meaning |
|---|---|
| SD047 | Indicates the specific bearing size series with a 4.75" bore and 5.75" outside diameter. |
| C | Specifies the radial internal clearance group (C3 equivalent in this context, corresponding to 0.0000 – 0.0005"). |
| P0 | Denotes the standard tolerance class, equivalent to ABEC-1 precision. |
| Open / Lubricated | The bearing is supplied open (unsealed) and is pre-lubricated for immediate operation. |
SD047CP0 Bearing Structural Features & Performance Benefits
- Superior Space Efficiency: The thin section design (0.5" width) provides a large diameter-to-width ratio, enabling compact and lightweight assemblies without sacrificing bore size.
- Corrosion Resistance & Durability: Constructed entirely from stainless steel rings and balls with a brass cage, this bearing is ideal for applications exposed to moisture, chemicals, or requiring washdown.
- High Load Capacity: Engineered to handle significant radial loads (1892 lbf dynamic, 3530 lbf static) despite its slim profile, ensuring long service life under demanding conditions.
- Stable Operation & Precision: The ABEC-1 tolerance class and controlled radial internal clearance contribute to smooth, low-vibration running and precise rotational accuracy.
- Broad Temperature Range: Suitable for operating temperatures from -30°C to 110°C, accommodating a wide range of industrial environments.
SD047CP0 Bearing Typical Application Areas
This bearing is ideally suited for applications where a large, precise shaft must be supported within a very limited axial space. Key industries and equipment include:
- Robotics: Joint and actuator bearings in robotic arms.
- Aerospace & Defense: Gimbals, control mechanisms, and instrumentation.
- Medical Equipment: Scanners, centrifuges, and surgical robots.
- Semiconductor Manufacturing: Wafer handling robots and precision stages.
- Optical and Imaging Systems: Rotary stages for cameras and sensors.
