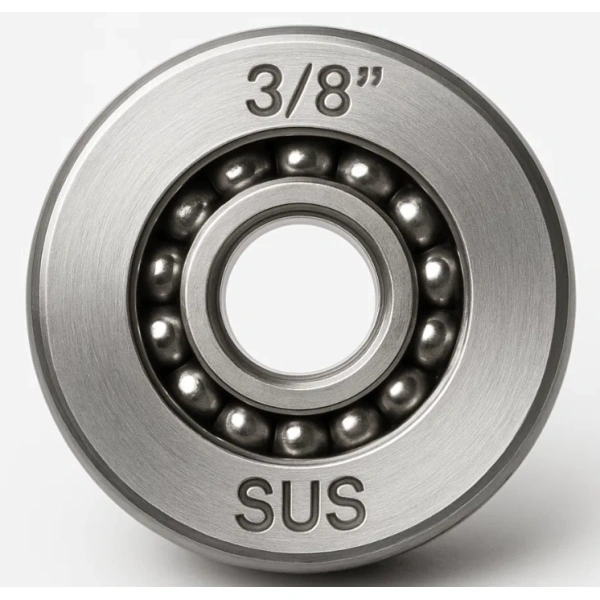

SC040CP0
3/8" Stainless Steel Constant Section Bearings
Image may differ from product. See technical specification for details.
Basic Information
Main Dimensions
Inner Ring Dimensions
Outer Ring Dimensions
Performance
Materials
Environment & Compliance
- Fast delivery
- Free shipping on orders over $200
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
SC040CP0 Bearing Product Overview & Core Advantages
The SC040CP0 is a high-performance thin section bearing from the Reali-Slim Stainless Steel Bearings series. Engineered as a single row ball bearing with an open design, it is specifically designed for applications demanding compact design and lightweight construction without compromising on strength. Its primary advantage lies in its ability to handle radial loads efficiently while offering excellent corrosion resistance due to its all-stainless-steel construction, making it ideal for precision machinery and clean environments.
SC040CP0 Bearing Model Code Explained, Specifications & Naming Convention
| Code Segment | Technical Meaning |
|---|---|
| SC | Indicates the bearing series, specifically the Reali-Slim Stainless Steel type with a thin cross-section. |
| 040 | Specifies the bore size in inches. Here, a 4" bore diameter. |
| C | Denotes the clearance group, corresponding to the specified radial internal clearance. |
| P | Signifies the precision class, in this case ABEC-1 for standard precision applications. |
| 0 | Indicates the seal type is Open (no seal or shield), allowing for easy re-lubrication. |
SC040CP0 Bearing Structural Features & Performance Benefits
Thin-Section Design: The bearing features a remarkably slim cross-section (0.375" width) relative to its large bore, enabling significant space and weight savings in the overall assembly. This is critical for compact machinery design.
Corrosion Resistance: Constructed entirely from stainless steel (rings and balls) with a brass cage, the bearing offers superior resistance to corrosion, making it suitable for harsh environments, washdown areas, and applications requiring cleanliness.
Load Capacity & Precision: With a radial dynamic load rating of 1073 lbf and a radial static load rating of 2100 lbf, it provides reliable performance under load. Manufactured to ABEC-1 tolerance class, it ensures consistent and smooth operation.
Operational Versatility: The open construction and pre-lubrication allow for a wide operating temperature range of -30°C to 110°C, providing flexibility across various application conditions.
SC040CP0 Bearing Typical Application Areas
- Robotics and Automation: Used in robotic arms and joints where lightweight, compact design is paramount.
- Aerospace and Defense: Ideal for gimbal systems, control mechanisms, and instrumentation due to its precision and corrosion resistance.
- Medical Equipment: Suitable for scanning, imaging, and surgical devices requiring clean, reliable, and precise motion.
- Food & Beverage Processing Machinery: Applied in conveyors and mixers where corrosion resistance and washdown capability are essential.
- Semiconductor Manufacturing Equipment: Used in precision stages and handlers where contamination must be minimized.
