SAA10AG0

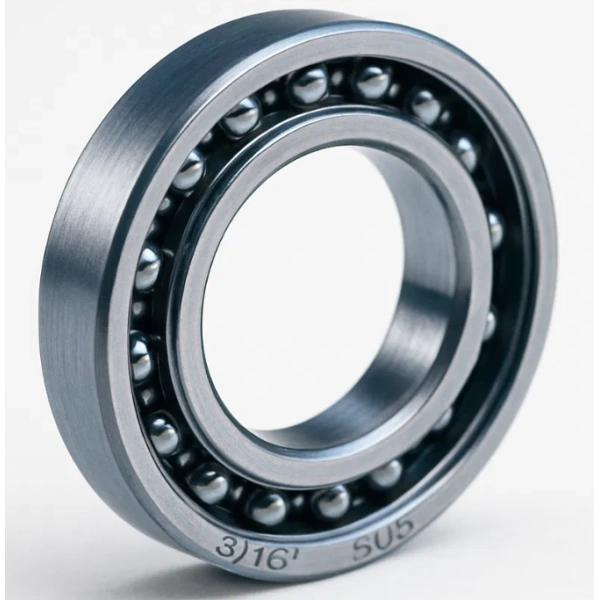

3/16" Stainless Steel Constant Section Bearings
Image may differ from product. See technical specification for details.
Part No.
Part No.
SAA10AG0
Basic Information
Bearing type
Ball
System of measurement
Inch
Thin section bearings type
Reali-Slim Stainless Steel
Construction
Single Row
Weight
0.025 lbs
Tolerance class
ABEC-1
ISO radial rating
590 lbf
Seal type
Open
For load direction
Angular Contact
Main Dimensions
Bore diameter
1"
Bore diameter tolerance
-0.0004"– 0"
Outside diameter
1.375"
Outside diameter tolerance
-0.0005" – 0"
Width
0.1875"
Width tolerance
+.000 –.005"
Contact angle
30 °
Inner Ring Dimensions
Shoulder diameter inner ring
1.14"
Outer Ring Dimensions
Outer ring large-side face inner diameter
1.274"
Outer ring small-side face inner diameter
1.235"
Performance
Temperature range
-30°C to 110 °C
Radial dynamic load rating
194 lbf
Radial static load rating
340 lbf
Axial static load rating
450 lbf
Static load moment
970 lbf
Lubrication
Lubricated
Radial internal clearance
0.0000 – 0.0005"
Materials
Ring material
Stainless Steel
Ball material
Stainless Steel
Cage material
Nylon
Environment & Compliance
ROHS
Compliant
Technical Drawings
No drawings available at the moment, will be launched soon
Price:
$ 105.81
/ each
In Stock
- Fast delivery
- Free shipping on orders over $200
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
SAA10AG0 Bearing Product Overview & Core Advantages
The SAA10AG0 is a high-precision thin section angular contact ball bearing designed for applications demanding compact design and high performance. Manufactured from stainless steel with a nylon cage, it is engineered to handle combined loads efficiently, offering a significant axial static load capacity of 450 lbf. Its ABEC-1 precision class and optimized 30° contact angle make it an ideal solution for high-reliability, space-constrained systems requiring smooth operation and long service life.
SAA10AG0 Bearing Model Code Explained, Specifications & Naming Convention
| Code Segment | Technical Meaning |
|---|---|
| SAA | Indicates the Reali-Slim® series, a family of thin-section bearings. |
| 10 | Specifies the cross-section size/code of the bearing. |
| A | Denotes the 30° contact angle, optimized for handling high axial loads. |
| G | Specifies the radial internal clearance group. |
| 0 | Indicates an open (unsealed) design, allowing for custom lubrication schemes. |
SAA10AG0 Bearing Structural Features & Performance Benefits
- Compact & Lightweight Design: With a minimal cross-section (Width: 0.1875") and low weight (0.025 lbs), this bearing is ideal for saving space and reducing inertia in precision instruments and robotic systems.
- High Load Capacity: The angular contact single-row design and 30° contact angle enable it to support significant combined radial and axial loads simultaneously, with a high axial static load rating.
- Corrosion Resistance & Clean Operation: The all-stainless steel construction (rings and balls) provides excellent corrosion resistance, making it suitable for harsh environments and cleanroom applications. The nylon cage ensures smooth, quiet operation.
- Precision Performance: Manufactured to ABEC-1 tolerance standards, it guarantees running accuracy and consistent performance, contributing to the overall precision of the application.
SAA10AG0 Bearing Typical Application Areas
- Robotics: Robot arm joints, grippers, and rotary actuators.
- Aerospace & Defense: Guidance systems, gimbal mechanisms, and control surfaces.
- Medical Equipment: Surgical robots, diagnostic scanners, and dental handpieces.
- Semiconductor Manufacturing: Wafer handling robots and precision stages.
- Optical & Instrumentation: Rotary stages, encoders, and precision measuring devices.
