S6800

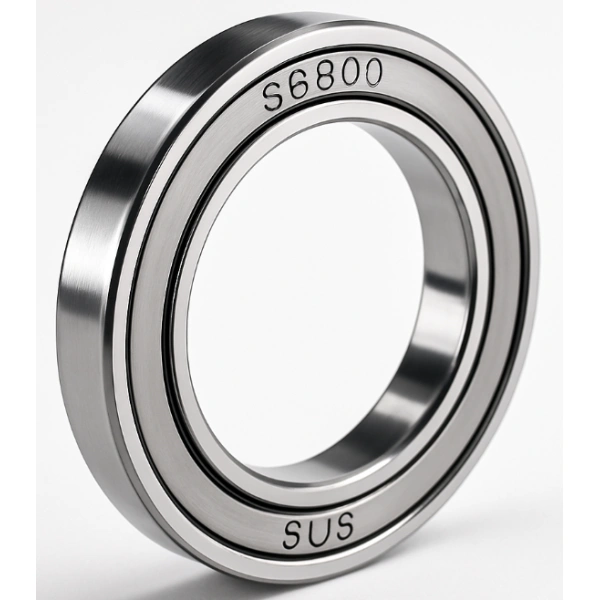

S6800 Series Stainless Steel Thin Section Bearings
Image may differ from product. See technical specification for details.
Part No.
Part No.
S6800
Basic Information
Bearing type
Ball
System of measurement
Metric
Construction
Single Row
Weight
5.6 g
Tolerance class
ABEC-1
Seal type
Open
For load direction
Radial
Main Dimensions
Bore diameter
10 mm
Bore diameter tolerance
-0.008mm to 0
Outside diameter
19 mm
Outside diameter tolerance
-0.009mm to 0
Width
5 mm
Width tolerance
-0.120mm to 0
Performance
Temperature range
-86 to 230 °F
Radial dynamic load rating
348 lbf
Radial static load rating
170 lbf
Limiting speed
30.6 X 1000 rpm
Lubrication
Required
Radial internal clearance
0.003mm to 0.018mm
Radial internal clearance
C0
Materials
Ring material
Stainless Steel
Ball material
Stainless Steel
Cage material
Stainless Steel
Environment & Compliance
REACH
Compliant
ROHS
Compliant
Technical Drawings
No drawings available at the moment, will be launched soon
Price:
$ 1.32
/ each
In Stock
- Fast delivery
- Free shipping on orders over $200
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
S6800 Bearing Product Overview & Core Advantages
The S6800 is a metric single row deep groove ball bearing engineered for high-performance applications requiring precision and reliability. Constructed entirely from stainless steel, it offers excellent corrosion resistance. Its open design facilitates high-speed operation, while its ABEC-1 precision class ensures consistent running accuracy. This bearing is specifically designed to handle significant radial loads and is ideal for compact assemblies where space and weight are critical factors.
S6800 Bearing Model Code Explained, Specifications & Naming Convention
| Model Segment | Interpretation | Technical Significance |
|---|---|---|
| S68 | Series Designation | Indicates a miniature deep groove ball bearing series with a 10mm bore. |
| 00 | Size Code | Specifies the dimensional series: 19mm OD, 5mm Width. |
| (Open) | Seal Type | No seal suffix denotes an open bearing, optimized for high-speed performance and allowing for custom lubrication schemes. |
S6800 Bearing Structural Features & Performance Benefits
- All-Stainless-Steel Construction: The rings, balls, and cage are manufactured from stainless steel, providing superior corrosion resistance and making the bearing suitable for harsh environments and washdown applications.
- High-Speed Capability: The open design and stainless steel cage minimize friction and allow for a high limiting speed of 30,600 rpm, which is critical for precision spindles and small motors.
- Radial Load Capacity: The deep groove raceway and robust construction enable it to support substantial radial dynamic loads (348 lbf) and radial static loads (170 lbf).
- Precision Engineering: Manufactured to ABEC-1 tolerance class with a standard C0 radial internal clearance, ensuring smooth, quiet, and vibration-free operation.
- Compact and Lightweight: With dimensions of 10x19x5mm and a weight of just 5.6 grams, it is ideal for applications with severe space and weight constraints.
S6800 Bearing Typical Application Areas
- Precision Instruments: Optical encoders, medical devices, and laboratory equipment.
- Small High-Speed Motors: Spindles for dental handpieces, miniature drones, and high-speed fans.
- Office Automation Equipment: Printers, scanners, and copiers.
- Robotics and Automation: Joints and guides in small robotic arms and linear actuators.
- Food and Beverage Processing: Equipment requiring corrosion-resistant stainless steel bearings for washdown.
