S11003AS0

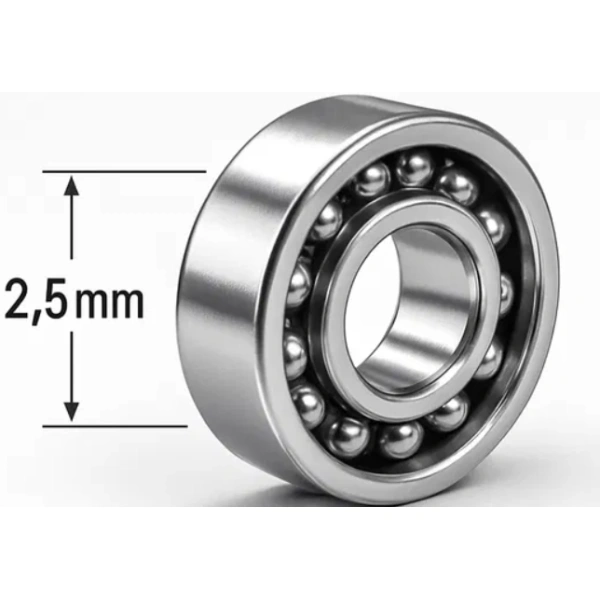

2.5mm Stainless Steel Constant Section Bearings
Image may differ from product. See technical specification for details.
Part No.
Part No.
S11003AS0
Basic Information
Bearing type
Ball
System of measurement
Metric
Thin section bearings type
UltraSlim
Construction
Single Row
Weight
16 g
Tolerance class
ABEC-1
Seal type
Open
For load direction
Angular Contact
Main Dimensions
Bore diameter
110 mm
Bore diameter tolerance
-0.013mm to 0
Outside diameter
116 mm
Outside diameter tolerance
-0.013mm to 0
Width
2.5 mm
Width tolerance
+.000 –.127mm
Contact angle
30 °
Inner Ring Dimensions
Shoulder diameter inner ring
112.2 mm
Outer Ring Dimensions
Outer ring small-side face inner diameter
113.8 mm
Performance
Temperature range
-30°C to 110 °C
Radial dynamic load rating
183 lbf
Radial static load rating
266 lbf
Static load moment
195 lbf
Lubrication
Lubricated
Radial internal clearance
0.0000 – 0.0005"
Materials
Ring material
Stainless Steel
Ball material
Stainless Steel
Cage material
Stainless Steel
Environment & Compliance
ROHS
Compliant
Technical Drawings
No drawings available at the moment, will be launched soon
Price:
$ 412.17
/ each
In Stock
- Fast delivery
- Free shipping on orders over $200
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
S11003AS0 Bearing Product Overview & Core Advantages
The S11003AS0 is a single row angular contact ball bearing from the UltraSlim Bearings series, designed for applications demanding minimal cross-section and high precision. Engineered to primarily accommodate combined loads (simultaneous radial and axial loads), its 30° contact angle provides excellent axial load capacity. Manufactured entirely from stainless steel and built to ABEC-1 precision tolerances, this bearing is ideal for compact, lightweight assemblies requiring reliable performance in corrosive environments.
S11003AS0 Bearing Model Code Explained, Specifications & Naming Convention
| Model Segment | Technical Meaning |
|---|---|
| S1 | Indicates the UltraSlim bearing series with a 1-inch cross-section. |
| 1003 | Specifies the bore diameter (100 mm) and the specific bearing size variant. |
| AS0 | Denotes a 30° contact angle and an open (unsealed) design. |
S11003AS0 Bearing Structural Features & Performance Benefits
- Ultra-Thin Section & Lightweight: With a mere 2.5 mm width and a weight of only 16 grams, this bearing enables extremely compact and lightweight designs, crucial for applications where space and mass are critical constraints.
- High Precision & Rigidity: Built to ABEC-1 tolerance standards with a very low radial internal clearance (0.0000 – 0.0005"), it ensures smooth, precise rotation and minimal runout, contributing to overall system accuracy.
- Corrosion Resistance: The all-stainless steel construction (rings, balls, and cage) provides excellent resistance to corrosion, making it suitable for use in harsh environments, medical equipment, and food processing.
- Angular Contact Design: The 30° contact angle is optimized to handle significant axial loads in one direction in addition to radial loads, a key feature for applications like precision spindles.
S11003AS0 Bearing Typical Application Areas
- Precision Robotics: Used in robot joint arms and end-effectors where compact size, low weight, and high rigidity are paramount.
- Aerospace & Defense Systems: Ideal for guidance systems, gimbal mechanisms, and instrumentation due to its lightweight and corrosion-resistant properties.
- Medical & Dental Devices: Suitable for surgical handpieces, scanners, and other precision medical instruments requiring smooth, reliable motion.
- Optical & Instrumentation Systems: Applied in rotary stages, encoders, and measuring devices where high precision and minimal cross-section are required.
