ND075CP0
1/2" Constant Section Bearings

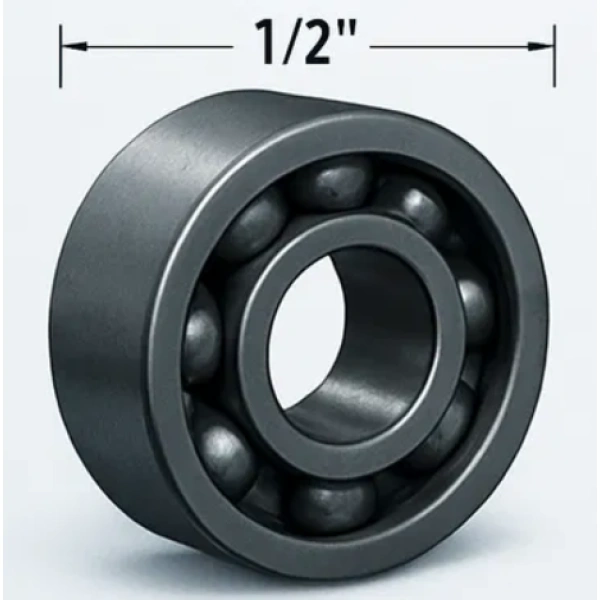

Image may differ from product. See technical specification for details.
Basic Information
Main Dimensions
Inner Ring Dimensions
Outer Ring Dimensions
Performance
Materials
Environment & Compliance
- Fast delivery
- Free shipping on orders over $200
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
ND075CP0 Bearing Product Overview & Core Advantages
The ND075CP0 is a single row ball bearing engineered for radial load applications requiring precision and durability. Featuring a thin-section design with Endura-kote plating, this bearing offers excellent corrosion resistance and dimensional stability. Its inch dimensions (7.5" bore × 8.5" OD × 0.5" width) make it ideal for space-constrained applications while maintaining high radial load capacity (dynamic: 2434 lbf, static: 5470 lbf). The ABEC-1 precision class ensures reliable performance in various industrial settings.
ND075CP0 Bearing Model Code Explained, Specifications & Naming Convention
| Code Segment | Technical Meaning | Performance Benefit |
|---|---|---|
| ND075 | Bore diameter: 7.5 inches | Standard inch sizing for compatibility |
| C | Radial internal clearance specification | Optimized for precision applications (0.0000 – 0.0005") |
| P0 | Normal precision grade (equivalent to ABEC-1) | Cost-effective precision for general applications |
ND075CP0 Bearing Structural Features & Performance Benefits
Thin-Section Construction: The single row design with 0.5" width provides space-saving advantages while maintaining structural integrity, making it suitable for compact bearing arrangements.
Premium Material Selection: Chrome steel rings and balls combined with brass cage construction deliver excellent wear resistance and reliable operation under radial dynamic loads up to 2434 lbf.
Surface Enhancement Technology: The Endura-kote chromium plating significantly improves corrosion resistance and extends service life in challenging environments.
Precision Engineering: Tight dimensional tolerances (bore/OD: -0.0012" to 0") and controlled radial internal clearance ensure smooth operation and precise positioning capabilities.
ND075CP0 Bearing Typical Application Areas
- Aerospace components and aircraft control systems
- Medical equipment requiring precise radial support
- Robotics and automation systems with space constraints
- Precision instruments and measuring devices
- Industrial machinery with moderate speed requirements
- Military and defense equipment requiring reliable performance
