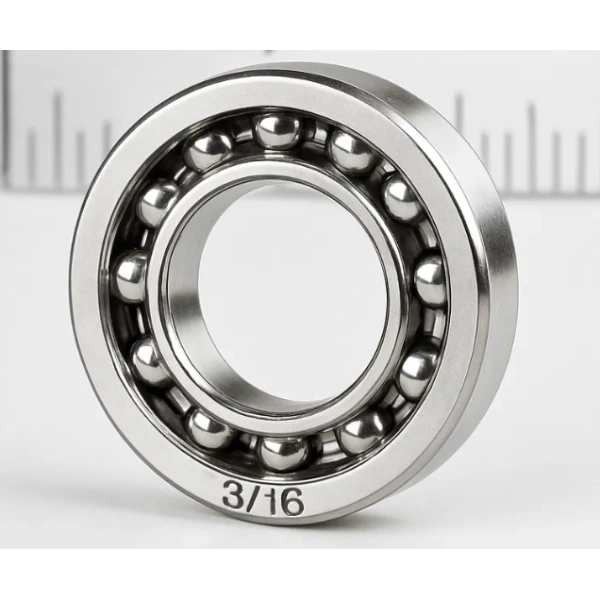

NAA17CL0
3/16" Constant Section Bearings
Image may differ from product. See technical specification for details.
Basic Information
Main Dimensions
Inner Ring Dimensions
Outer Ring Dimensions
Performance
Materials
Environment & Compliance
- Fast delivery
- Free shipping on orders over $200
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
NAA17CL0 Bearing Product Overview & Core Advantages
The NAA17CL0 is a single row thin section ball bearing engineered for precision radial load applications where space and weight are critical constraints. Featuring Endura-kote chromium plating for enhanced corrosion resistance, this bearing delivers reliable performance in compact designs. Its ABEC-1 precision class ensures consistent operation while maintaining excellent value for applications requiring high rotational accuracy and minimal cross-section dimensions.
NAA17CL0 Bearing Model Code Explained, Specifications & Naming Convention
| Code Segment | Technical Meaning |
|---|---|
| NAA17CL0 | Manufacturer's specific designation for thin section bearing series |
| Endura-kote | Chromium plating coating for superior corrosion protection |
| Open | No seals or shields, allowing for custom lubrication schemes |
| ABEC-1 | Standard precision tolerance class for reliable performance |
NAA17CL0 Bearing Structural Features & Performance Benefits
Thin Section Design: With a minimal cross-section of only 0.1875", this bearing enables compact machinery design while maintaining structural integrity. The optimized bearing dimensions (1.75" bore × 2.125" OD) provide maximum load capacity within minimal space envelope.
Enhanced Material Construction: Manufactured from chrome steel for both rings and balls, combined with a nylon cage, this configuration ensures smooth operation and reduced friction. The chromium plating extends service life in challenging environments.
Precision Performance: The radial internal clearance of 0.0000 – 0.0005" and ABEC-1 tolerances guarantee consistent rotational accuracy and minimal vibration during operation.
NAA17CL0 Bearing Typical Application Areas
- Aerospace systems - Control mechanisms, actuator systems
- Medical equipment - Surgical robots, imaging devices
- Semiconductor manufacturing - Precision positioning stages
- Robotics - Joint mechanisms, articulated arms
- Optical instruments - Rotary stages, positioning systems
