K09013CP0
13mm Constant Section Bearings

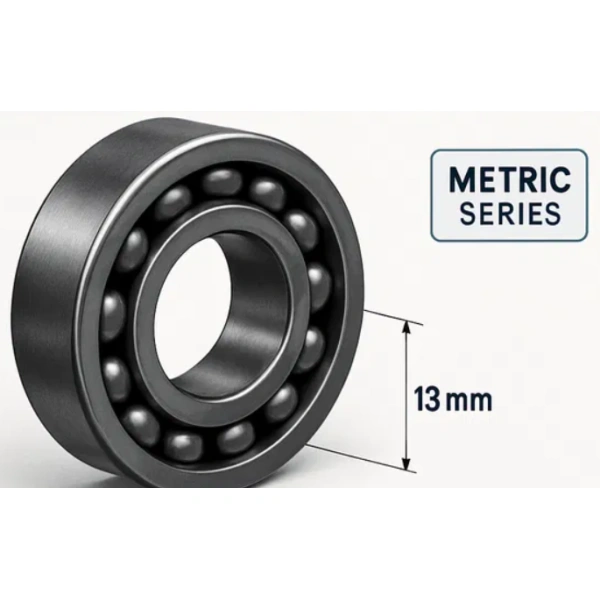

Image may differ from product. See technical specification for details.
Part No.
Part No.
K09013CP0
Basic Information
Bearing type
Ball
System of measurement
Metric
Thin section bearings type
Reali-Slim mm Metric
Construction
Single Row
Weight
0.29 kg
Tolerance class
ABEC-1
ISO radial rating
3349 lbf
Seal type
Open
For load direction
Radial
Main Dimensions
Bore diameter
90 mm
Bore diameter tolerance
-0.02mm to 0
Outside diameter
116 mm
Outside diameter tolerance
-0.015mm to 0
Width
13 mm
Width tolerance
+.000 –.127mm
Inner Ring Dimensions
Shoulder diameter inner ring
99.7 mm
Outer Ring Dimensions
Outer ring small-side face inner diameter
106.3 mm
Performance
Temperature range
-30°C to 110 °C
Radial dynamic load rating
2052 lbf
Radial static load rating
3419 lbf
Lubrication
Lubricated
Radial internal clearance
0.0000 – 0.0005"
Materials
Ring material
Chrome Steel
Ball material
Chrome Steel
Cage material
Brass
Environment & Compliance
ROHS
Compliant
Technical Drawings
No drawings available at the moment, will be launched soon
Price:
$ 57.26
/ each
In Stock
- Fast delivery
- Free shipping on orders over $200
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
K09013CP0 Bearing Product Overview & Core Advantages
The K09013CP0 is a thin-section metric bearing from the Reali-Slim series, engineered for applications demanding compact design and high precision. This single-row ball bearing is designed primarily for radial loads, offering a superior strength-to-cross-section ratio. Its ABEC-1 precision class and chrome steel construction ensure reliable performance in space-constrained, high-accuracy assemblies. The open design allows for custom sealing solutions while the pre-lubrication facilitates immediate operation.
K09013CP0 Bearing Model Code Explained, Specifications & Naming Convention
| Code Segment | Technical Meaning |
|---|---|
| K09013 | Indicates the core bearing size: 90mm bore, 116mm OD, 13mm width. |
| C | Specifies the radial internal clearance group. |
| P0 | Denotes the ABEC-1 tolerance class (Normal Precision). |
| Open / No Seal Code | The bearing is supplied open, offering maximum design flexibility for custom sealing or lubrication systems. |
K09013CP0 Bearing Structural Features & Performance Benefits
- Thin-Section Design: The compact cross-section (13mm width) with a large 90mm bore minimizes system weight and envelope size without sacrificing load capacity, ideal for robotic arms and aerospace mechanisms.
- High Load Capacity: Constructed from chrome steel rings and balls, it delivers a dynamic load rating of 2052 lbf and a static load rating of 3419 lbf, providing robust performance under significant radial loads.
- Precision & Stability: The ABEC-1 tolerance and controlled radial internal clearance ensure smooth, low-vibration operation, critical for precise positioning.
- Durability & Low Maintenance: The brass cage provides excellent stability at moderate speeds, while the standard lubrication and wide operating temperature range (-30°C to 110°C) ensure long service life.
K09013CP0 Bearing Typical Application Areas
This bearing is ideally suited for applications where space and weight are at a premium, including:
- Aerospace & Defense: Actuation systems, gimbal mechanisms, and control surfaces.
- Industrial Robotics: Joints and rotary actuators in robot arms.
- Medical Equipment: Scanning and imaging devices (e.g., CT scanners, MRI machines).
- Semiconductor Manufacturing: Precision stages and wafer handling equipment.
- Optical Instrumentation: Rotary stages for mirrors and lenses.
