J02508CP0

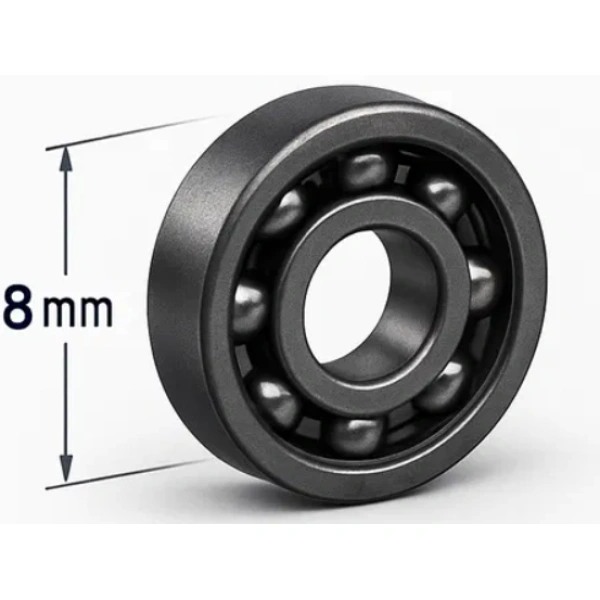

8mm Constant Section Bearings
Image may differ from product. See technical specification for details.
Part No.
Part No.
J02508CP0
Basic Information
Bearing type
Ball
System of measurement
Metric
Thin section bearings type
Reali-Slim mm Metric
Construction
Single Row
Weight
0.06 kg
Tolerance class
ABEC-1
ISO radial rating
1053 lbf
Seal type
Sealed
For load direction
Radial
Main Dimensions
Bore diameter
25 mm
Bore diameter tolerance
-0.01mm to 0
Outside diameter
41 mm
Outside diameter tolerance
-0.01mm to 0
Width
8 mm
Width tolerance
+.000 –.127mm
Inner Ring Dimensions
Shoulder diameter inner ring
31.55 mm
Outer Ring Dimensions
Outer ring small-side face inner diameter
34.42 mm
Performance
Temperature range
-30°C to 110 °C
Radial dynamic load rating
562 lbf
Radial static load rating
668 lbf
Lubrication
Lubricated
Radial internal clearance
0.0000 – 0.0005"
Materials
Ring material
Chrome Steel
Ball material
Chrome Steel
Cage material
Brass
Environment & Compliance
ROHS
Compliant
Technical Drawings
No drawings available at the moment, will be launched soon
Price:
$ 49.26
/ each
In Stock
- Fast delivery
- Free shipping on orders over $200
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
J02508CP0 Bearing Product Overview & Core Advantages
The J02508CP0 is a metric thin-section bearing from the Reali-Slim mm Metric Bearings series, featuring a single row design and sealed construction. Engineered for applications demanding compact cross-sections and high precision, this bearing excels in handling radial loads efficiently within space-constrained assemblies. Its ABEC-1 tolerance class ensures reliable performance in precision mechanisms, while the sealed design with factory-applied lubrication provides long-term, maintenance-free operation. The combination of a thin section, sealed protection, and consistent radial load capacity makes it an ideal choice for high-reliability, compact systems.
J02508CP0 Bearing Model Code Explained, Specifications & Naming Convention
| Code Segment | Technical Meaning |
|---|---|
| J02508 | Indicates a thin-section bearing with a 25mm bore diameter, 41mm outside diameter, and 8mm width. |
| C | Specifies radial internal clearance (0.0000 – 0.0005 inches). |
| P | Denotes ABEC-1 precision tolerance. |
| 0 | Indicates a sealed configuration with factory-applied lubrication for protection and long service life. |
J02508CP0 Bearing Structural Features & Performance Benefits
- Thin-Section Design: Enables significant space and weight savings in compact assemblies without sacrificing performance, making it ideal for applications where envelope size is critical.
- Sealed & Lubricated Construction: The integrated seals retain lubricant and exclude contaminants, ensuring maintenance-free operation and extended bearing life in demanding environments.
- Precision Performance: Manufactured to ABEC-1 tolerance standards, the bearing provides consistent running accuracy and smooth operation, suitable for precision instruments and mechanisms.
- Robust Load Capacity: With a dynamic radial load rating of 562 lbf and static radial load rating of 668 lbf, it reliably handles substantial radial loads in compact spaces.
- High-Quality Materials: Constructed from chrome steel rings and balls with a brass cage, the bearing offers excellent durability, corrosion resistance, and stable operation across a temperature range of -30°C to 110°C.
J02508CP0 Bearing Typical Application Areas
- Robotics & Automation: Joints, actuators, and precision positioning systems where compact size and reliable radial load support are essential.
- Aerospace & Defense: Guidance systems, control mechanisms, and instrumentation requiring lightweight, high-precision components.
- Medical Equipment: Imaging devices, surgical robots, and diagnostic instruments demanding smooth, precise, and contamination-free operation.
- Semiconductor Manufacturing: Wafer handling, positioning stages, and other precision machinery where thin sections and ABEC-1 precision are critical.
- Optical & Instrumentation Systems: Rotary stages, encoders, and measuring devices benefiting from the bearing's compact design and consistent performance.
