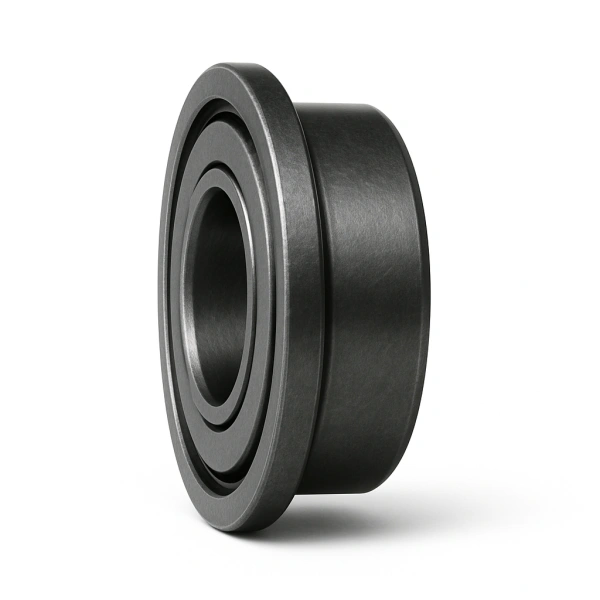

F636ZZ
F Series Flanged Miniature Bearings
Image may differ from product. See technical specification for details.
Basic Information
Main Dimensions
Inner Ring Dimensions
Outer Ring Dimensions
Ball & Washer Dimensions
Performance
Materials
Environment & Compliance
- Fast delivery
- Free shipping on orders over $200
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
F636ZZ Bearing Product Overview & Core Advantages
The F636ZZ is a metric single row deep groove ball bearing designed for high-performance radial load applications. Featuring shielded construction and manufactured to ABEC1 precision class, this bearing delivers reliable operation in compact spaces. Its optimized design provides excellent rotational accuracy and high-speed capability up to 36,000 rpm, making it ideal for applications demanding both precision and durability.
F636ZZ Bearing Model Code Explained, Specifications & Naming Convention
| Suffix | Technical Meaning | Performance Benefit |
|---|---|---|
| ZZ | Double-sided steel shields | Provides effective contamination protection while maintaining low torque characteristics |
| F6 | Flanged outer ring design | Enables easy mounting and precise axial positioning in housing assemblies |
F636ZZ Bearing Structural Features & Performance Benefits
Optimized Internal Geometry: The deep groove raceway and 7 precision chrome steel balls ensure smooth operation and high radial load capacity (740 lbf dynamic rating).
Enhanced Contamination Resistance: Double stainless steel shields (300 series) provide superior protection against dust and debris, extending bearing service life.
Precision Engineering: Manufactured to ABEC1 tolerance class with controlled radial internal clearance (MC3: 0.002-0.013mm) for consistent performance and low vibration.
High-Speed Capability: The stainless steel cage and optimized ball complement enable stable operation at limiting speeds up to 36,000 rpm.
F636ZZ Bearing Typical Application Areas
- Small precision motors and miniature DC motors
- Office automation equipment including printers and scanners
- Medical devices and laboratory instrumentation
- Robotic joints and automation components
- Computer cooling fans and small power tools
- Optical equipment and precision mechanisms
