F6000zz
F Series Flanged Bearings

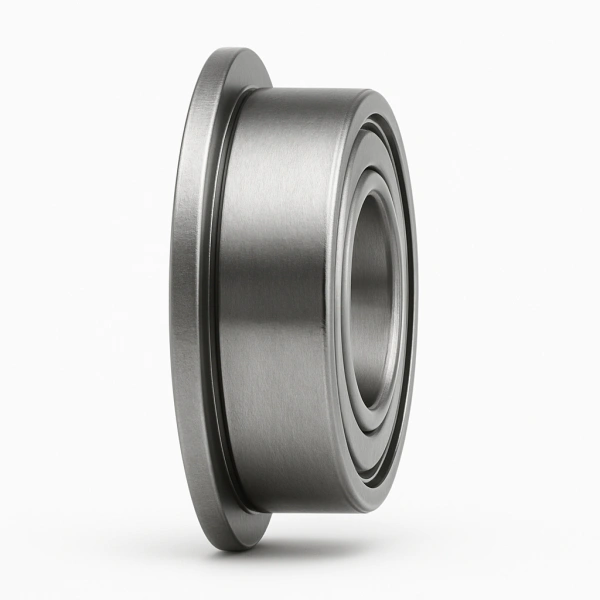

Image may differ from product. See technical specification for details.
Part No.
Part No.
F6000zz
Basic Information
Bearing type
Ball
System of measurement
Metric
Construction
Single Row
Weight
0.02 kg
Tolerance class
P6
Seal type
Shielded
For load direction
Radial
Main Dimensions
Bore diameter
10 mm
Bore diameter tolerance
-0.007mm to 0
Outside diameter
26 mm
Outside diameter tolerance
-0.009mm to 0
Width
8 mm
Width tolerance
-0.12 mm to 0
Inner Ring Dimensions
Inner ring type
Standard
Outer Ring Dimensions
Flange outer diameter
28 mm
Flange thickness
2 mm
Performance
Temperature range
-30° to 120 °C
Radial dynamic load rating
1030 lbf
Radial static load rating
443 lbf
Limiting speed
34 X 1000 rpm
Lubrication
Grease
Radial internal clearance
CN
Materials
Ring material
Chrome Steel
Ball material
Chrome Steel
Cage material
Stainless Steel
Environment & Compliance
REACH
Compliant
ROHS
Compliant
Technical Drawings
No drawings available at the moment, will be launched soon
Price:
$ 1.76
/ each
In Stock
- Fast delivery
- Free shipping on orders over $200
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
F6000zz Bearing Product Overview & Core Advantages
The F6000zz is a single row deep groove ball bearing designed for high-performance applications requiring precision and reliability. Engineered with shielded construction, it effectively protects against contamination while retaining lubrication. This bearing excels in handling radial loads and is characterized by its compact design with an integral flange for secure mounting. Manufactured to P6 tolerance class, it ensures precise operation and is pre-lubricated with grease for immediate use, making it ideal for applications demanding high rotational accuracy and long service life.
F6000zz Bearing Model Code Explained, Specifications & Naming Convention
| Suffix Code | Technical Meaning | Performance Advantage |
|---|---|---|
| zz | Double-sided metal shields | Provides excellent protection against contaminants while retaining lubricant, enabling maintenance-free operation |
F6000zz Bearing Structural Features & Performance Benefits
- High Precision Construction: Manufactured to P6 tolerance class with optimized internal geometry for smooth, quiet operation and precise rotational accuracy.
- Enhanced Contamination Protection: The double-sided metal shields (zz) effectively exclude contaminants while retaining lubricant, significantly extending bearing service life.
- Robust Load Capacity: Deep groove raceway design enables efficient handling of radial loads with a dynamic load rating of 1030 lbf and static load rating of 443 lbf.
- Optimized High-Speed Performance: Features a stainless steel cage and precision-ground components that contribute to stable operation at limiting speeds up to 34,000 rpm.
- Simplified Mounting: Integrated flange design (28 mm outer diameter) provides secure axial location and simplifies installation in housing structures.
- Premium Material Selection: Chrome steel rings and balls combined with stainless steel cage ensure durability and corrosion resistance in demanding environments.
F6000zz Bearing Typical Application Areas
- Electric Motors and small precision motors
- Office Automation Equipment including printers, scanners, and copiers
- Medical Devices and laboratory equipment requiring quiet, precise operation
- Small Power Tools and handheld devices
- Precision Instruments and measuring equipment
- Automotive Components including auxiliary motors and actuators
- Textile Machinery spindles and guiding systems
