F10-18

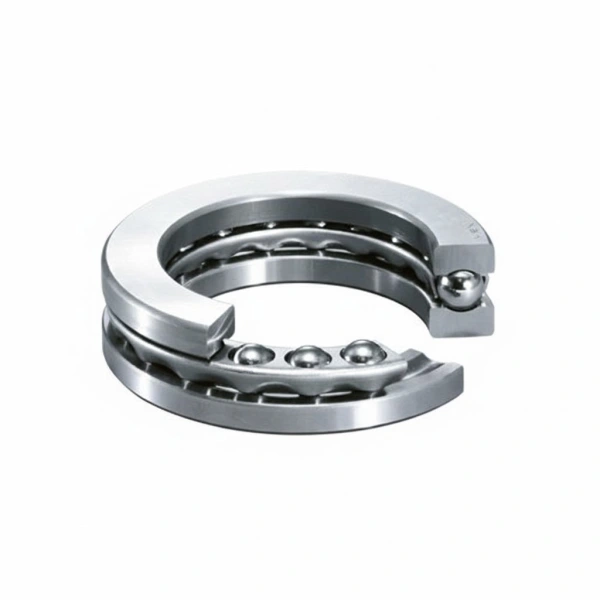

Miniature Thrust Ball Bearings
Image may differ from product. See technical specification for details.
Part No.
Part No.
F10-18
Basic Information
Bearing type
Ball
System of measurement
Metric
Weight
6 g
Seal type
Open
For load direction
Thrust
Main Dimensions
Bore diameter
10 mm
Bore diameter tolerance
-0.008mm to 0
Outside diameter
18 mm
Outside diameter tolerance
-0.008mm to 0
Width
5.5 mm
Width tolerance
-0.12mm to 0
Chamfer dimension
0.2 mm
Inner Ring Dimensions
Inner ring type
Standard
Ball & Washer Dimensions
Ball diameter
2.381 mm
Ball quantity
10
Washers type
flat raceway
Shaft washer outer diameter
17.8 mm
Performance
Temperature range
-30° to 110 °C
Axial dynamic load rating
502 lbf
Axial static load rating
612 lbf
Limiting speed
2.5 X1000 rpm
Lubrication
Required
Materials
Ring material
Chrome Steel
Ball material
Chrome Steel
Cage material
Brass
Environment & Compliance
REACH
Compliant
ROHS
Compliant
Technical Drawings
No drawings available at the moment, will be launched soon
Price:
$ 1.81
/ each
In Stock
- Fast delivery
- Free shipping on orders over $200
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
F10-18 Bearing Product Overview & Core Advantages
The F10-18 is a metric thrust ball bearing engineered for high-precision axial load applications. This compact bearing features a standard inner ring and flat raceway washers, designed to accommodate pure thrust loads in one direction with exceptional reliability. Manufactured from chrome steel for durability and using a brass cage for stability, it is ideal for applications demanding compact dimensions and consistent performance under axial stress.
F10-18 Bearing Model Code Explained, Specifications & Naming Convention
| Code Segment | Technical Meaning |
|---|---|
| F10-18 | Standard model designation for a metric thrust ball bearing with a 10mm bore and 18mm outside diameter. |
| Open (Seal Type) | The bearing is supplied without seals or shields, requiring external lubrication and protection from contaminants. |
F10-18 Bearing Structural Features & Performance Benefits
- High Axial Load Capacity: The flat raceway design and chrome steel construction enable it to handle significant axial dynamic load ratings of 502 lbf and static ratings of 612 lbf.
- Precision Engineering: Tight dimensional tolerances on the bore diameter and outside diameter ensure precise fit and reliable operation in high-accuracy assemblies.
- Stable High-Speed Operation: The brass cage accurately spaces the 10 precision balls, contributing to smooth operation and a limiting speed of 2,500 rpm.
- Compact and Lightweight: With a width of only 5.5 mm and a weight of just 6 grams, it is an ideal solution for space-constrained applications.
F10-18 Bearing Typical Application Areas
This bearing is commonly specified in:
- Automotive steering systems (e.g., thrust applications in gearboxes)
- Industrial machinery with axial load requirements, such as machine tool tables and positioning systems
- Precision instruments and optical devices requiring compact thrust solutions
- Pumps and compressors for handling axial loads in rotating assemblies
