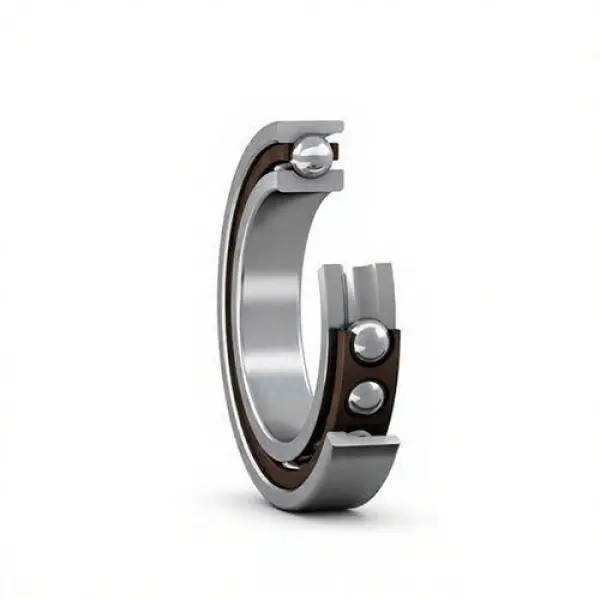

Image may differ from product. See technical specification for details.
Basic Information
Main Dimensions
Ball & Washer Dimensions
Performance
Materials
- Fast delivery
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
7220 CD/P4ADBA Bearing Product Overview & Core Advantages
The 7220 CD/P4ADBA is a precision duplex angular contact ball bearing designed for applications demanding exceptional rotational accuracy and rigidity. This matched back-to-back (DB) arrangement is preloaded to Extra Light (Class A) specifications, ensuring minimal axial and radial play for superior system stability. Its primary advantage lies in its ability to handle combined loads—simultaneously supporting significant radial forces and thrust loads in both directions. Manufactured to the stringent P4A tolerance class, this bearing is the ideal choice for high-precision, high-rigidity, and high-speed applications where uncompromising performance is critical.
7220 CD/P4ADBA Bearing Model Code Explained, Specifications & Naming Convention
| Code Segment | Technical Meaning |
|---|---|
| 7220 | Basic bearing series, indicating a 100 mm bore and 180 mm outside diameter. |
| C | Specifies a 15° contact angle, optimized for high-speed operation and high thrust capacity. |
| D | Indicates the bearing is part of a duplex pair. |
| P4A | Denotes a high-precision tolerance class with enhanced running accuracy and dimensional stability. |
| DB | Specifies the back-to-back mounting arrangement, providing high moment stiffness. |
| A | Indicates the Extra Light preload level for minimal friction and optimal high-speed performance. |
7220 CD/P4ADBA Bearing Structural Features & Performance Benefits
- High Rigidity & Stability: The duplex back-to-back (DB) design creates a wide, rigid support system that effectively resists moment loads and shaft deflection, ensuring precise alignment and smooth operation under demanding conditions.
- Superior Load Capacity: With a 15° contact angle and robust construction, this bearing excels at handling combined radial and axial loads from both directions simultaneously, making it suitable for complex loading scenarios.
- Optimized High-Speed Performance: The lightweight phenolic resin cage minimizes centrifugal forces and ensures stable operation at the high limiting speed. The Extra Light preload further reduces friction and heat generation.
- Precision Engineering: Manufactured to P4A tolerance class with tight dimensional control on bore, outside diameter, and width, this bearing guarantees exceptional running accuracy and consistent performance in precision machinery.
- Durable Construction: Components made from chrome steel provide high hardness, wear resistance, and long service life, even under continuous operation.
7220 CD/P4ADBA Bearing Typical Application Areas
The 7220 CD/P4ADBA is engineered for high-performance applications across various industries, including:
- Machine Tool Spindles: For CNC machining centers, grinders, and lathes requiring high precision, rigidity, and speed.
- High-Frequency Motors & Spindles: In applications where minimal runout and high rotational accuracy are paramount.
- Precision Gearboxes & Drive Systems: To support shafts subjected to significant radial and axial forces.
- Aerospace & Defense Systems: In gyroscopes, radar equipment, and other critical rotational mechanisms.
- Medical & Laboratory Equipment: For high-speed centrifuges and other precision instruments.
