6700 2rs

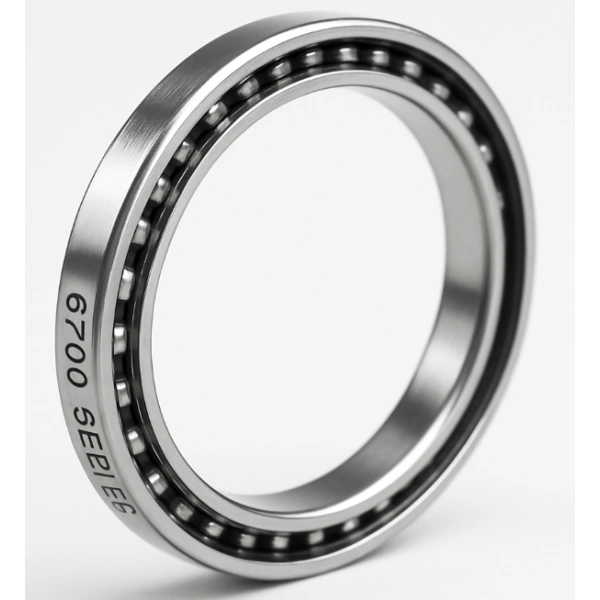

6700 Series Thin Section Bearings
Image may differ from product. See technical specification for details.
Basic Information
Main Dimensions
Performance
Materials
Environment & Compliance
- Fast delivery
- Free shipping on orders over $200
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
6700 2rs Bearing Product Overview & Core Advantages
The 6700 2RS is a sealed single row deep groove ball bearing designed for compact applications requiring reliable performance. This metric bearing excels in handling radial loads while offering protection against contamination through its integrated seals. Its compact dimensions (10mm bore, 15mm OD, 4mm width) and ABEC-1 precision make it suitable for applications demanding consistent operation and space efficiency. The bearing comes pre-lubricated and is ready for installation, providing immediate operational readiness.
6700 2rs Bearing Model Code Explained, Specifications & Naming Convention
| Code Segment | Technical Meaning |
|---|---|
| 6700 | Basic series designation indicating a single row deep groove ball bearing with 10mm bore, 15mm OD |
| 2RS | Double rubber contact seals on both sides providing excellent protection against contaminants |
6700 2rs Bearing Structural Features & Performance Benefits
Sealed Construction: The double rubber seals (2RS) effectively prevent the ingress of contaminants while retaining lubrication, significantly extending service life in demanding environments.
Load Capacity: With a dynamic load rating of 193 lbf and static load rating of 98 lbf, this bearing provides reliable performance under radial loading conditions.
High-Speed Capability: The stainless steel cage and optimized design enable a limiting speed of 17,000 rpm, suitable for various high-speed applications.
Precision Performance: Manufactured to ABEC-1 tolerance class with C0 radial clearance (0.003mm to 0.018mm), ensuring consistent operation and reduced vibration.
Material Quality: Constructed from chrome steel rings and balls with stainless steel cage for durability and corrosion resistance.
6700 2rs Bearing Typical Application Areas
- Small electric motors and miniature DC motors
- Office automation equipment including printers and scanners
- Medical devices and laboratory equipment
- Robotics and precision instruments
- Computer cooling fans and small pumps
- Audio-visual equipment and consumer electronics
