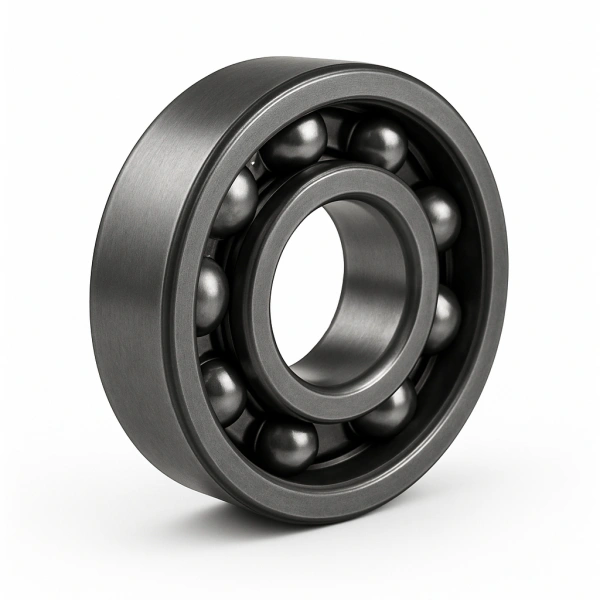

Image may differ from product. See technical specification for details.
Basic Information
Main Dimensions
Performance
Materials
Environment & Compliance
- Fast delivery
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
6001-2RSH/VA947 Bearing Product Overview & Core Advantages
The 6001-2RSH/VA947 is a single row deep groove ball bearing designed for high-performance applications requiring exceptional reliability. This metric bearing features integral seals (2RSH) and a specialized high-temperature grease (VA947), making it ideal for environments demanding contamination protection and stable operation across a wide temperature range. Its P6 tolerance class ensures high running accuracy, while the robust construction of chrome steel rings and balls with a stainless steel cage delivers excellent durability and long service life.
Model Code Breakdown
| Code Segment | Technical Meaning |
|---|---|
| 6001 | Basic bearing designation indicating a single row deep groove ball bearing with a 12mm bore, 28mm OD, and 8mm width. |
| 2RSH | Sealing code: 2 = Two seals, RSH = Contact seals made of NBR rubber, providing superior sealing effectiveness against contaminants. |
| VA947 | Lubrication code: Indicates the bearing is pre-lubricated with a special high-temperature grease, suitable for a temperature range of -30°C to +120°C. |
6001-2RSH/VA947 Bearing Structural Features & Performance Benefits
Optimized Sealing & Protection: The 2RSH contact seals on both sides effectively prevent the ingress of moisture, dust, and other contaminants, while retaining lubricant. This significantly enhances bearing reliability in harsh environments.
High-Temperature Capability: The VA947 grease is formulated for continuous operation at elevated temperatures up to 120°C, ensuring consistent lubrication and preventing premature failure in thermally demanding applications.
Precision & High-Speed Performance: Manufactured to P6 tolerance class, this bearing offers high dimensional and running accuracy. Combined with the stainless steel cage, it supports a high limiting speed of 17,000 rpm, making it suitable for high-speed spindles and motors.
Robust Load Capacity: With a dynamic load rating of 1214 lbf and a static load rating of 531 lbf, this deep groove ball bearing is engineered to handle significant radial loads efficiently.
6001-2RSH/VA947 Bearing Typical Application Areas
- Electric Motors & Generators
- Small Machinery Spindles
- Pumps & Gearboxes
- Office Automation Equipment (e.g., printers, copiers)
- Medical Devices requiring quiet and clean operation
- Food Processing Machinery where contamination must be minimized
