206SZZ-HYB#1

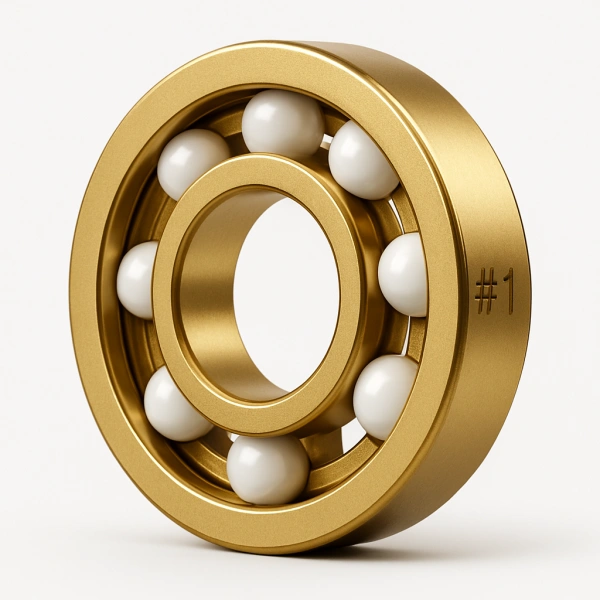

High-Performance Custom Hybrid Ceramic Bearings (#1 Series)
Image may differ from product. See technical specification for details.
Basic Information
Main Dimensions
Performance
Materials
Environment & Compliance
- Fast delivery
- Free shipping on orders over $200
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
206SZZ-HYB#1 Bearing Product Overview & Core Advantages
The 206SZZ-HYB#1 is a metric single row deep groove ball bearing engineered for exceptional performance in demanding applications. Featuring ceramic silicon nitride balls and shielded construction, this bearing is designed for high-speed operation up to 12,000 rpm while providing reliable radial load capacity. Its precision ABEC 1 (ISO P0) tolerance and optimized CN clearance ensure smooth, quiet operation with minimal vibration, making it ideal for applications requiring high reliability and long service life.
206SZZ-HYB#1 Bearing Model Code Explained, Specifications & Naming Convention
| Code Segment | Technical Meaning |
|---|---|
| 206 | Bearing series designation, indicating specific dimensions and load characteristics |
| S | Single row deep groove ball bearing construction |
| ZZ | Double shielded design providing superior contamination protection |
| HYB#1 | Hybrid bearing designation with ceramic balls and steel rings |
206SZZ-HYB#1 Bearing Structural Features & Performance Benefits
Hybrid Construction: The combination of chrome steel rings with silicon nitride ceramic balls provides superior performance characteristics including reduced friction, higher speed capability, and extended service life compared to all-steel bearings.
Double Shielded Protection: The ZZ shielding effectively prevents contamination ingress while maintaining low torque characteristics, ensuring reliable operation in various environments.
High-Speed Capability: With a limiting speed of 12,000 rpm, this bearing excels in high-rotation applications, benefiting from the lower density and superior hardness of ceramic balls.
Precision Engineering: Manufactured to ABEC 1 (ISO P0) tolerance standards with CN radial clearance, delivering consistent performance and smooth operation.
Temperature Resilience: Operating temperature range of -30°C to 120°C ensures reliable performance across various environmental conditions.
206SZZ-HYB#1 Bearing Typical Application Areas
- High-speed spindles and precision machining equipment
- Electric motors and generator applications
- Medical equipment requiring clean, reliable operation
- Aerospace components and instrumentation
- Robotics and automation systems
- Pumps and compressor systems
- Applications requiring non-magnetic properties or electrical insulation
