206S-HNCR-HYB

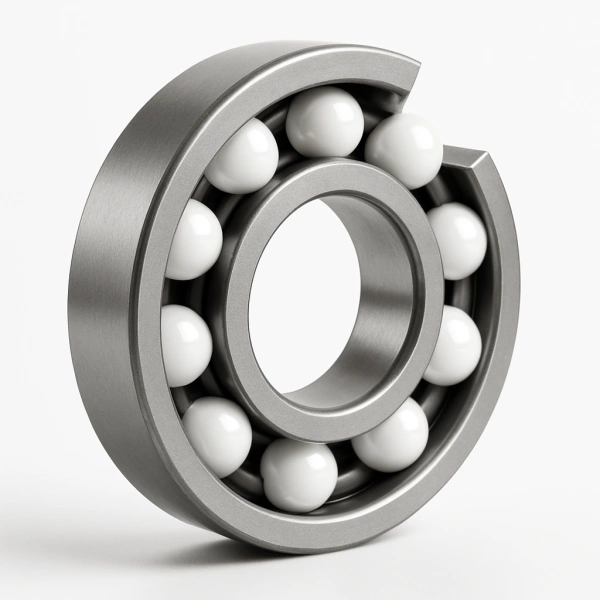

200 & 300 Series HNCR & Stainless Hybrid Ceramic Bearings
Image may differ from product. See technical specification for details.
Basic Information
Main Dimensions
Performance
Materials
Environment & Compliance
- Fast delivery
- Free shipping on orders over $200
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
206S-HNCR-HYB Bearing Product Overview & Core Advantages
The 206S-HNCR-HYB is a single row deep groove ball bearing engineered for exceptional performance in demanding applications. This precision bearing features a hybrid ceramic design with stainless steel rings and silicon nitride ceramic balls, offering superior electrical insulation, reduced weight, and enhanced operational capabilities. Its primary advantages include high-speed operation, excellent radial load capacity, and reliable performance across a wide temperature range. The open design allows for versatile lubrication options, making it ideal for applications requiring high reliability and long service life.
206S-HNCR-HYB Bearing Model Code Explained, Specifications & Naming Convention
| Code Segment | Technical Meaning |
|---|---|
| 206S | Standard deep groove ball bearing series with specific bearing dimensions (30mm bore, 62mm OD, 16mm width) |
| HN | Hybrid construction featuring stainless steel rings |
| CR | Ceramic rolling elements (silicon nitride balls) |
| HYB | Hybrid bearing designation |
206S-HNCR-HYB Bearing Structural Features & Performance Benefits
Hybrid Ceramic Design: The combination of stainless steel rings and ceramic balls provides excellent electrical insulation properties, reducing electrical erosion and extending bearing life in electrically charged environments. The ceramic balls are lighter than steel, contributing to lower centrifugal forces and enabling higher limiting speeds.
Precision Engineering: Manufactured to ABEC 1 | ISO P0 tolerance class with CN radial internal clearance, this bearing ensures consistent performance and smooth operation. The chrome steel cage provides reliable ball guidance and stability at high rotational speeds.
High Load Capacity: With a radial dynamic load rating of 4699 lbf and static load rating of 3664 lbf, this bearing delivers robust performance under significant radial loads. The open seal type allows for optimal lubrication customization based on specific application requirements.
Wide Temperature Range: Operating effectively from -30°C to 120°C, this bearing maintains performance across diverse environmental conditions while being ROHS and REACH compliant for environmental safety.
206S-HNCR-HYB Bearing Typical Application Areas
- Electric Motors & Generators: Particularly in applications requiring electrical insulation and high-speed operation
- Precision Machinery: Machine tools, spindles, and positioning systems benefiting from hybrid ceramic advantages
- Medical Equipment: Diagnostic devices and laboratory instruments requiring reliable, maintenance-free operation
- Aerospace & Defense: Guidance systems and auxiliary equipment where weight reduction and reliability are critical
- Food Processing & Packaging: Stainless steel construction suitable for corrosive environments and washdown applications
