206N

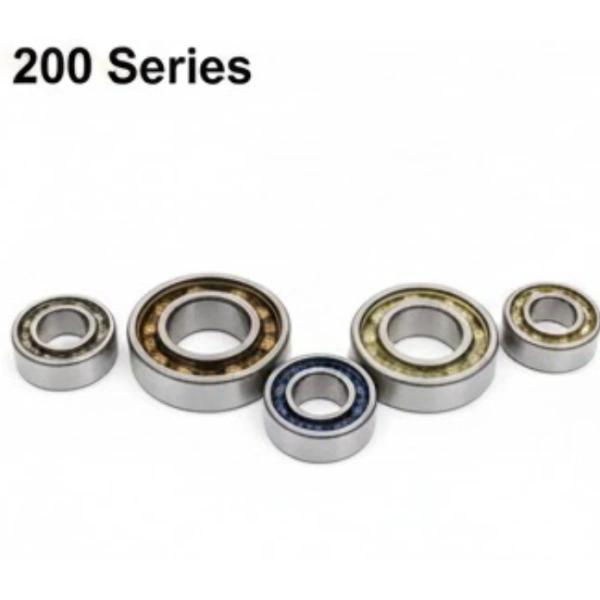

200 Series Snap Ring Bearings
Image may differ from product. See technical specification for details.
Part No.
Part No.
206N
Basic Information
Bearing type
Ball
System of measurement
Metric
Construction
Single Row
Weight
0.21 kg
Tolerance class
ABEC 1 | ISO P0
Seal type
Open
For load direction
Radial
Main Dimensions
Bore diameter
30 mm
Bore diameter tolerance
-0.01mm to 0
Outside diameter
62 mm
Outside diameter tolerance
-0.013mm to 0
Width
16 mm
Width tolerance
-0.12mm to 0
Outer Ring Dimensions
Outer ring locating feature
Snap Ring Groove
Performance
Temperature range
-30°to 120 °C
Radial dynamic load rating
4699 lbf
Radial static load rating
3664 lbf
Limiting speed
12 X 1000 rpm
Lubrication
None
Radial internal clearance
CN
Materials
Ring material
Chrome Steel
Ball material
Chrome Steel
Cage material
Chrome Steel
Environment & Compliance
REACH
Compliant
ROHS
Compliant
Technical Drawings
No drawings available at the moment, will be launched soon
Price:
$ 9.2
/ each
In Stock
- Fast delivery
- Free shipping on orders over $200
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
206N Bearing Product Overview & Core Advantages
The 206N metric ball bearing is a single row deep groove ball bearing engineered for reliable performance in radial load applications. Featuring an open design and manufactured to ABEC 1 precision, it delivers consistent operation with a high limiting speed of 12,000 rpm. Its construction from chrome steel ensures durability and resistance to wear, making it a robust and cost-effective solution for various industrial machinery.
206N Bearing Model Code Explained, Specifications & Naming Convention
| Code Segment | Technical Meaning |
|---|---|
| 206 | Standard bearing series designation, indicating specific dimension series. |
| N | Identifies the presence of a snap ring groove on the outer ring for secure axial locating. |
| (No Seal Suffix) | The bearing is open, allowing for custom lubrication schemes and enabling high-speed operation. |
206N Bearing Structural Features & Performance Benefits
- Secure Axial Location: The snap ring groove (N designation) on the outer ring simplifies housing design by providing a positive locating feature, reducing assembly complexity and cost.
- High-Speed Capability: The open construction minimizes friction and heat generation, enabling a high limiting speed of 12,000 rpm for demanding applications.
- Radial Load Capacity: The single row deep groove raceway is optimized to carry significant radial dynamic loads (4699 lbf) and static loads (3664 lbf).
- Standardized Precision: Manufactured to ABEC 1 (ISO P0) tolerance class with CN radial internal clearance, ensuring reliable, consistent performance and interchangeability.
206N Bearing Typical Application Areas
- Electric Motors and Generators
- Gearboxes and Power Transmission Systems
- Industrial Fans and Blowers
- Material Handling Conveyors
- Agricultural Machinery
- Automotive Components (e.g., alternators, idlers)
