206

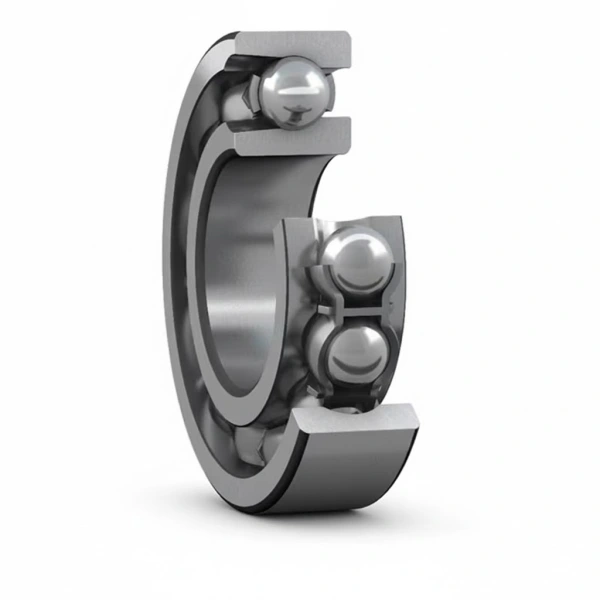

With Filling Slots Deep Groove Bearings
Image may differ from product. See technical specification for details.
Part No.
Part No.
206
Basic Information
Bearing type
Ball
System of measurement
Metric
Construction
Single Row
Weight
0.21 kg
Tolerance class
P0
Seal type
Open
For load direction
Radial
Main Dimensions
Bore diameter
30 mm
Bore diameter tolerance
-0.01mm to 0
Outside diameter
62 mm
Outside diameter tolerance
-0.013mm to 0
Width
16 mm
Width tolerance
-0.12mm to 0
Performance
Temperature range
-30° to 120 °C
Radial dynamic load rating
4699 lbf
Radial static load rating
3664 lbf
Limiting speed
12 X 1000 rpm
Lubrication
None
Radial internal clearance
CN
Materials
Ring material
Chrome Steel
Ball material
Chrome Steel
Cage material
Nylon
Environment & Compliance
REACH
Compliant
ROHS
Compliant
Technical Drawings
No drawings available at the moment, will be launched soon
In Stock
Price available upon request.
Our sales team will respond within 24 hours with a competitive quote tailored to your requirements.
REQUEST A QUOTE
- Fast delivery
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
206 Bearing Product Overview & Core Advantages
The 206 is a metric, single row deep groove ball bearing designed for outstanding performance in a wide range of industrial applications. Engineered with precision tolerances and high-quality materials, it excels at handling primarily radial loads and offers reliable operation. Its open design and optimized internal geometry contribute to low friction and high limiting speeds, making it a versatile and cost-effective solution for demanding environments requiring high reliability.
Model Code Breakdown
| Model Segment | Interpretation |
|---|---|
| 206 | Standard designation for a single row deep groove ball bearing with a 30mm bore, 62mm OD, and 16mm width. |
| Open | No seals or shields, allowing for higher speeds and easy re-lubrication. |
| P0 | Standard tolerance class (Normal). |
| CN | Normal group radial internal clearance. |
206 Bearing Structural Features & Performance Benefits
- High-Speed Capability: The open design minimizes friction and heat generation, while the lightweight nylon cage ensures stable operation, enabling a high limiting speed of 12,000 rpm.
- Robust Load Capacity: The deep groove raceway and high-quality chrome steel construction provide excellent radial dynamic and static load ratings (4699 lbf / 3664 lbf), ensuring durability under significant stress.
- Precision Engineering: Manufactured to P0 tolerance class with tight dimensional control on the bore diameter and outside diameter, guaranteeing consistent performance and ease of installation.
- Versatile Application Range: The specified temperature range of -30°C to 120°C and the option for custom lubrication make it suitable for various operational environments.
206 Bearing Typical Application Areas
This 206 bearing is ideally suited for a multitude of applications across various industries, including:
- Electric Motors and Generators
- Gearboxes and Transmission Systems
- Industrial Fans and Blowers
- Material Handling Equipment (Conveyors, Pulleys)
- Agricultural Machinery
- Automotive Auxiliary Units
