S-8798T11 0.302" ID x 35/64" OD x 2 ft. Long ASME B1.20.1, ASTM D4101 UV-Resistant Polypropylene Pipe for Chemicals

Name: 8798T11 UV-Resistant Polypropylene Pipe for Chemicals - SKDIN
Brand: SKDIN
SKU: SKDIN-8798T11
Availability: InStock

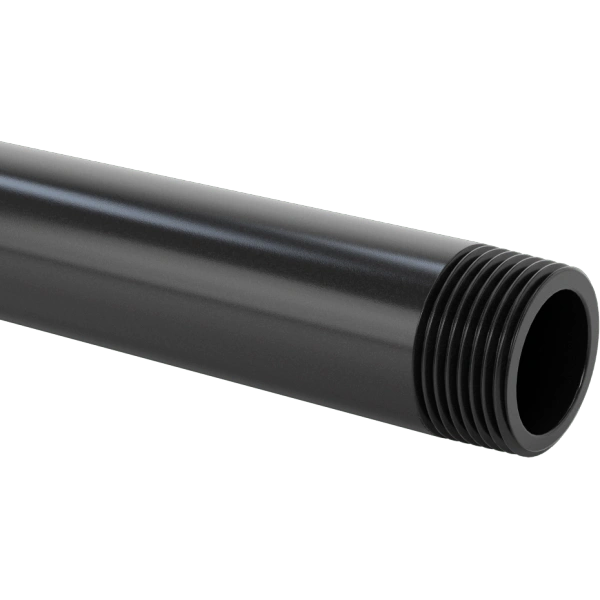

UV-Resistant Polypropylene Pipe for Chemicals

Image may differ from product. See technical specification for details.

Part No.

Part No. 1513FA00001

Equivalent to mcmaster :

8798T11

Basic Information

For Use With Acetic Acid (5%), Calcium Chloride, Deionized Water, Hydrochloric Acid (10%), Phosphoric Acid (85%), Salt Water, Sodium Chloride, Sodium Hydroxide, Sulfuric Acid, Water

Shape Straight

Type Pipe

Schedule 80

Material Polypropylene Plastic

Specifications Met ASME B1.20.1, ASTM D4101

RoHS RoHS 3 (2015/863/EU) Compliant

REACH REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant

Connection Parameters

Threading Threaded on Both Ends

Connection Type Pipe

Connection Style Threaded

Thread Type NPT

Gender Male

Dimension Parameters

Pipe Size 1/4

Length 2 ft.

OD 35/64"

ID 0.302"

Wall Thickness 0.119"

Dual End Parameters

System of Measurement Inch

Pressure & Temperature Parameters

Maximum Pressure 20 psi @ 72° F

Temperature Range Not Rated to 180° F

Material & Accessories Parameters

For Fitting Material Polypropylene Plastic

For Flange Material Polypropylene Plastic

For Flange Class 150

For Fitting Schedule 80

Color Black

Adhesive Parameters

Flexibility Rigid

Technical Drawings No drawings available at the moment, will be launched soon

In Stock

Price available upon request. Our sales team will respond within 24 hours with a competitive quote tailored to your requirements.

REQUEST A QUOTE

Fast delivery
Enjoy discounts on bulk purchases
Secure Payment
Fast Global Shipping

Key Features & Benefits at a Glance

Superior chemical resistance to acids, chlorides, and deionized water, ensuring long-term reliability in harsh environments
Rigid polypropylene construction maintains structural integrity under pressure and prevents deformation
NPT male threaded ends provide secure, leak-resistant connections compatible with standard fittings
Schedule 80 wall thickness offers enhanced durability and a 20 psi pressure rating for industrial applications
Compliance with ASME B1.20.1 and ASTM D4101 guarantees precise threading and material quality
REACH and RoHS 3 compliant for safe handling and environmental responsibility in regulated industries
UV-resistant black color helps protect against degradation in exposed outdoor or indoor settings

Professional Applications & Engineering Value

This 1/4" NPT male threaded polypropylene pipe is engineered to handle aggressive chemicals like sulfuric acid, sodium hydroxide, and hydrochloric acid, making it ideal for chemical processing, water treatment, and laboratory systems. Its rigid polypropylene material resists corrosion and cracking, reducing maintenance costs and downtime. The threaded connections ensure easy installation with Schedule 80 fittings, while the 20 psi rating supports low-pressure fluid transfer. By meeting ASME B1.20.1 and ASTM D4101 standards, it delivers consistent performance in demanding industrial environments, from chemical plants to deionized water distribution.

Specification Summary & Compliance

This pipe features NPT threads on both ends with standard Class 2A tolerances per ASME B1.20.1, ensuring precise fit. It complies with ASTM D4101 for material properties and is REACH (EC 1907/2006) and RoHS 3 (2015/863/EU) compliant, confirming adherence to health and environmental regulations. Dimensions include a 1/4" pipe size, 0.302" ID, 35/64" OD, and 0.119" wall thickness, rated for up to 20 psi at 72°F and temperatures not exceeding 180°F.
