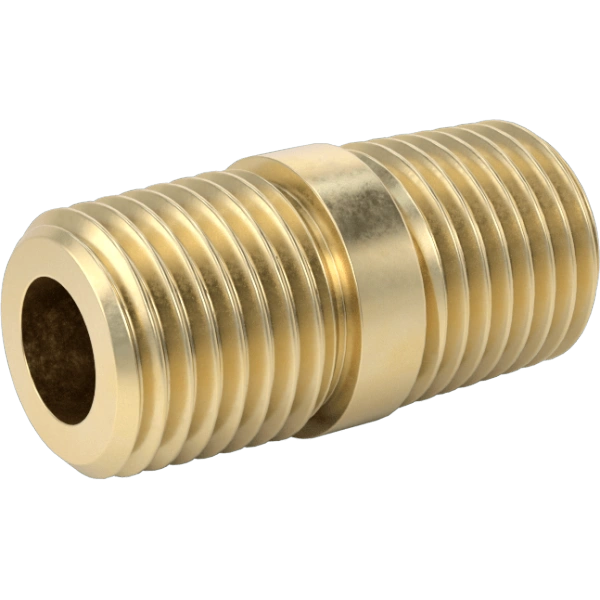

S-9171K111 0.19" ID x 1/2" OD x 3/4" Long ASME B1.20.1, ASME B31.1, ASME B31.3 Precision Extreme-Pressure Brass Threaded Pipe Nipples and Pipe

Key Features & Benefits at a Glance

• Extreme pressure handling - Rated for 5,600 psi working pressure to ensure reliable performance in demanding industrial applications
• Superior thread integrity - Rolled thread fabrication creates stronger, more durable threads that resist stripping and deformation
• Universal media compatibility - Certified for use with air, gas, oil, steam, and water systems, eliminating the need for multiple connector types
• Premium brass construction - 360 Brass material provides excellent corrosion resistance and long service life in harsh environments
• Precision dimensional accuracy - Fully threaded NPT design ensures leak-proof connections and easy installation
• Regulatory compliance assurance - Meets ASME standards and RoHS 3 requirements for quality and environmental safety
• High-temperature steam capability - Maintains 1,500 psi rating at 300°F for steam applications without performance degradation

Professional Applications & Engineering Value

This precision extreme-pressure brass pipe nipple delivers exceptional engineering value by solving critical connection challenges in industrial fluid systems. The 360 brass construction combined with rolled NPT threads creates a durable, corrosion-resistant connector that maintains integrity under extreme conditions. Engineers specify this component for demanding applications including high-pressure steam systems, industrial gas handling, and hydraulic oil circuits where failure is not an option. The fully threaded design ensures maximum engagement and prevents leakage in vibration-prone environments, while the precise 1/8" NPT male configuration provides seamless integration with standard piping systems. This pipe nipple eliminates the risk of system downtime by offering reliable performance across multiple media types from compressed air to oxygen service.

Specification Summary & Compliance

This 1/8" NPT male pipe nipple features precise dimensional accuracy with 3/4" length, 0.19" ID, and 1/2" OD specifications. The component meets rigorous ASME B1.20.1 thread standards and complies with ASME B31.1 and ASME B31.3 pressure piping codes. Manufacturing follows strict quality controls for rolled thread fabrication that exceeds typical cut thread performance. The product is RoHS 3 (2015/863/EU) compliant with exemption 6(c) for lead in copper alloy, ensuring environmental regulatory adherence while maintaining optimal material properties for extreme pressure applications.
