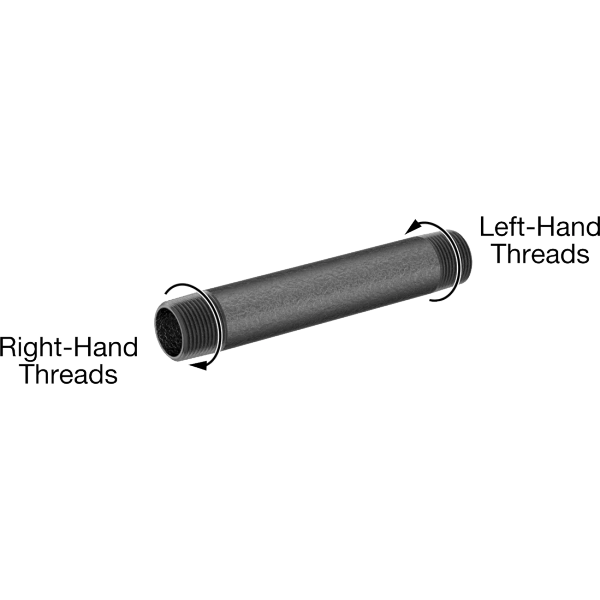

S-7748K163 0.493" ID x 43/64" OD x 4" Long ASME B1.20.1, ASTM A53, ASTM A733 Standard-Wall Steel Pipe Nipples and Pipewith Right-Hand and Left-Hand Threads
Standard-Wall Steel Pipe Nipples and Pipewith Right-Hand and Left-Hand Threads
Image may differ from product. See technical specification for details.
Basic Information
Connection Parameters
Dimension Parameters
Material & Accessories Parameters
- Fast delivery
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
Key Features & Benefits at a Glance
- Dual-direction threading enables easy installation and removal in confined spaces without requiring full rotation
- Black-coated steel construction provides enhanced corrosion resistance for extended service life in demanding environments
- Welded design with Schedule 40 wall thickness ensures superior pressure containment for industrial fluid systems
- Multi-medium compatibility delivers reliable performance with air, natural gas, oil, steam, and water applications
- Standardized NPT threading guarantees leak-free connections with compatible iron and steel fittings
- Precision 4" length offers optimal spacing flexibility in complex piping configurations
- Dual compliance certification meets both RoHS 3 and REACH environmental standards for global project suitability
Professional Applications & Engineering Value
This black-coated steel pipe nipple solves critical installation challenges in industrial fluid systems through its innovative right-hand and left-hand threaded design. The welded construction combined with Schedule 40 wall thickness provides exceptional burst pressure resistance when handling compressed air, natural gas distribution, hydraulic oil lines, steam systems, and water pipelines. The NPT thread standard ensures perfect sealing with Class 125 and 150 iron/steel fittings, eliminating leakage risks in high-vibration environments. Manufacturers benefit from the dual-thread configuration which significantly reduces installation time in tight spaces where full pipe rotation is impossible, making it ideal for maintenance, repair, and retrofit applications across chemical plants, manufacturing facilities, and energy infrastructure.
Specification Summary & Compliance
This 3/8" NPT threaded pipe nipple maintains precision ASME B1.20.1 thread standards with dimensional compliance to ASTM A53 and ASTM A733 specifications. The product features consistent 0.493" ID and 43/64" OD dimensions with 0.091" wall thickness throughout its 4" length. Manufacturing and material composition fully comply with RoHS 3 (2015/863/EU) restrictions and REACH (EC 1907/2006) substance regulations, ensuring environmental responsibility and global market acceptance.
