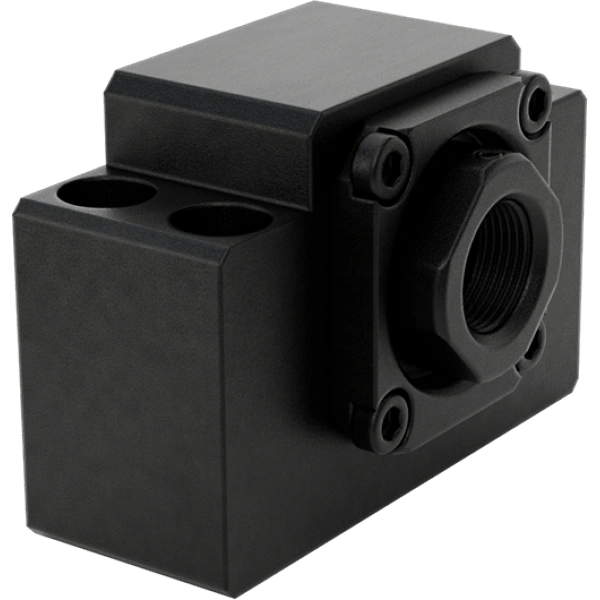

S-6624K57 15 mm ID Metric End Supports for Lead Screws and Ball Screws

Key Features & Benefits at a Glance

• Superior load handling - Supports combined radial and thrust loads up to 1700 lbs dynamic capacity for demanding industrial applications
• Enhanced contamination protection - Integrated seals prevent debris ingress, extending component service life in harsh environments
• Secure press-fit mounting - Ensures stable installation without additional fasteners for reliable lead screw and ball screw support
• Robust carbon steel construction - Provides excellent strength and durability across 0° to 160° F operating temperatures
• Precision mounting compatibility - Four 6.6mm mounting holes with 54mm center-to-center spacing for easy integration
• Standardized metric dimensions - 15mm ID with M15 locknut thread ensures compatibility with industry-standard components
• Regulatory compliance assurance - Meets RoHS 3 and REACH standards for global industrial applications

Professional Applications & Engineering Value

This 7002 metric end support delivers critical performance in lead screw and ball screw applications where precision motion control meets demanding load conditions. The carbon steel construction provides the structural integrity needed for continuous operation in industrial automation, CNC machinery, and linear motion systems. The press-fit mounting design eliminates potential loosening under vibration while the integrated seals protect against contaminants that could compromise screw accuracy. With capacity to handle combined radial and thrust loads up to 1700 lbs dynamic, this component solves the common engineering challenge of maintaining alignment and support under complex loading scenarios, ensuring extended service life for your motion control systems.

Specification Summary & Compliance

This end support features precise metric dimensions including 15mm ID, 48mm height, and 70mm width with four 6.6mm top mounting holes at 54mm center-to-center spacing. The component incorporates M15 locknut with 1mm pitch thread and is designed for press-fit mounting applications. Manufactured to industrial standards for lead screw and ball screw support systems, it complies with RoHS 3 (2015/863/EU) with exemption 6(c) and REACH (EC 1907/2006) regulations, ensuring environmental compliance for global industrial applications.
