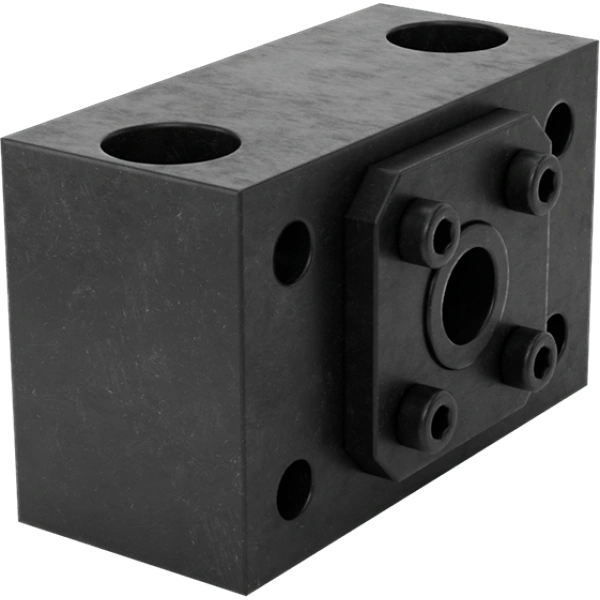

S-60755K13 15/32" ID End Supports for Lead Screws and Ball Screws

Key Features & Benefits at a Glance

• Exceptional load handling with 630 lbs dynamic and 1600 lbs static capacity for reliable performance in demanding industrial applications
• Versatile mounting capability featuring 6 precision mounting holes for secure installation and stable operation
• All-weather durability with operational temperature range from -40° to 210°F for consistent performance in extreme environments
• Complete protection system including integrated seals and washer to prevent contamination and extend service life
• Press-fit design ensuring precise lead screw alignment and reduced vibration during operation
• Multi-directional load support engineered to handle combined radial and thrust loads for comprehensive motion control
• Standard inch measurements providing compatibility with existing industrial systems and easy integration

Professional Applications & Engineering Value

This 7201 alloy steel end support delivers critical engineering solutions for industrial motion systems requiring robust lead screw and ball screw support. The press fit mounting design ensures precise alignment while minimizing backlash in automated machinery and CNC equipment. Engineered with alloy steel construction, this component withstands continuous combined radial and thrust loads in manufacturing environments, preventing premature wear and maintaining positioning accuracy. The integrated seals and washer provide essential protection against contaminants in harsh operating conditions, while the wide temperature tolerance ensures reliability from freezing cold to high-heat industrial settings. This end support addresses common failure points in linear motion systems by distributing loads effectively and maintaining structural integrity under dynamic stresses.

Specification Summary & Compliance

Manufactured to precise inch system specifications with critical dimensions including 1 7/8" height, 3" width, and 15/32" ID. Features standardized mounting hole patterns with 9/32" and 13/32" diameters arranged in precise center-to-center configurations. The component meets industrial standards for press fit mounting applications and includes compatibility with 0.469"-32 locknut thread systems. Engineered for reliable performance within specified load capacities and temperature ranges, ensuring compliance with industrial machinery requirements for motion control components.
