S-2198N11 M10 Metric Clamping Lead Screw Collars
Metric Clamping Lead Screw Collars

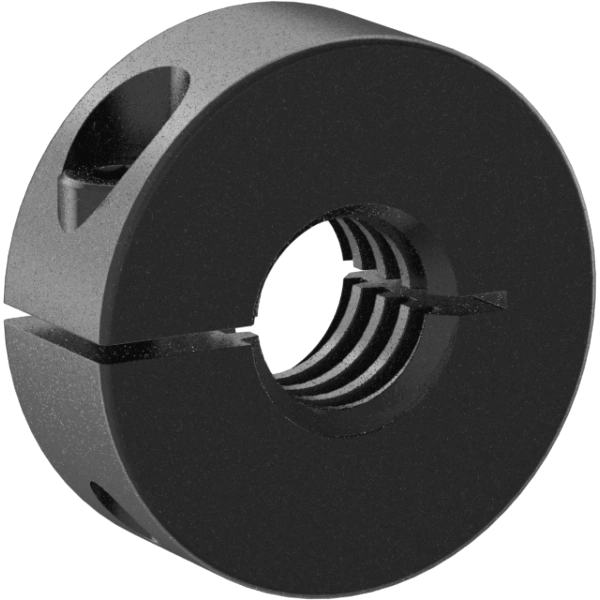

Image may differ from product. See technical specification for details.
Basic Information
Thread Parameters
Dimension Parameters
Lead Screw Specific Parameters
Other Parameters
- Fast delivery
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
Key Features & Benefits at a Glance
- Superior corrosion resistance with Black-Oxide finish on 1215 Carbon Steel, extending service life in harsh industrial environments.
- Reliable, high-strength clamping force due to Brinell 167 hardness, ensuring secure positioning without slippage on Acme lead screws.
- Precision trapezoidal thread engagement with M10 x 2 mm metric trapezoidal design for accurate motion control and reduced backlash.
- Easy installation and adjustment with the included M3 socket head clamping screw, allowing quick tool access and firm locking.
- One-piece robust construction provides consistent performance and durability under repetitive mechanical stress.
- Broad compatibility with standard Acme lead screw systems, simplifying integration into existing metric-driven machinery.
- Compliance with environmental regulations including RoHS 3 and REACH, ensuring safe use in global markets.
Professional Applications & Engineering Value
This M10 x 2 mm metric trapezoidal clamping collar is engineered to address common challenges in precision linear motion systems, such as vibration-induced loosening and misalignment on Acme lead screws. Constructed from Black-Oxide 1215 Carbon Steel, it offers excellent wear resistance and protection against rust, crucial for maintaining accuracy in CNC machinery, automated actuators, and industrial positioning equipment. The trapezoidal thread form ensures smooth, reliable engagement with minimal play, while the integrated M3 socket head screw delivers consistent clamping force for secure shaft mounting. Ideal for high-cycle applications, this collar enhances system longevity and reduces maintenance downtime, providing dependable performance in demanding industrial environments.
Specification Summary & Compliance
This collar features precise metric trapezoidal threading (M10 x 2 mm pitch) with standard right-hand direction, manufactured to typical industrial tolerances for consistent fit. It is made from 1215 Carbon Steel with a Black-Oxide surface treatment and Brinell 167 hardness for durability. The product complies with RoHS 3 (2015/863/EU) and REACH (EC 1907/2006) regulations, ensuring adherence to environmental and safety standards for industrial components.
