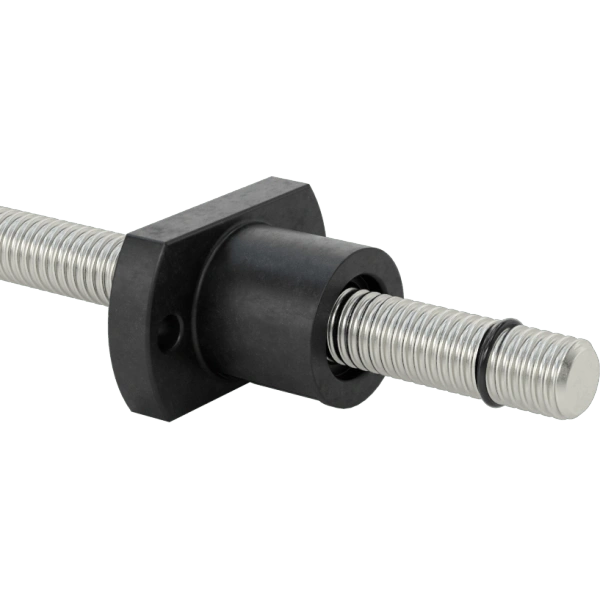

S-6624K11 M25 x 1000 mm Metric Ball Screws and Nuts

Key Features & Benefits at a Glance

• Exceptional precision with ±0.210 mm accuracy per 300 mm travel for reliable motion control in demanding applications
• Optimized efficiency with 5 mm travel per turn, enabling faster linear motion and improved cycle times
• Superior durability from carbon steel construction with Rockwell C58 hardness, resisting wear and deformation
• High load capacity supported by a 21,000 psi tensile strength for stable performance under stress
• Consistent thread quality through rolled fabrication, enhancing surface finish and fatigue life
• Broad thermal compatibility operating from 5° to 175° F, suitable for varied industrial environments
• Environmental compliance with RoHS 3 standards, ensuring safe and sustainable use

Professional Applications & Engineering Value

This M25 metric ball screw is engineered to address critical challenges in precision automation and motion systems. The carbon steel material, combined with Rockwell C58 hardness, provides exceptional resistance to mechanical wear and high loads, reducing maintenance frequency in CNC machinery, linear actuators, and industrial robotics. The fully threaded design with right-hand thread direction ensures uniform force distribution and smooth operation, while the rolled thread fabrication enhances surface integrity for minimal backlash and consistent performance. With a 5 mm travel per turn and tight accuracy of ±0.210 mm per 300 mm, it delivers reliable positioning in applications like packaging equipment, medical devices, and automated assembly lines, where repeatability and efficiency are paramount.

Specification Summary & Compliance

This ball screw features a metric thread size M25 with a root diameter of 22.2 mm and a length of 1000 mm, adhering to standard metric ball screw dimensions. It includes a single start thread for consistent engagement and is manufactured to precise tolerances, ensuring compatibility with standard nuts and supports. The product is RoHS 3 (2015/863/EU) compliant, meeting environmental regulations for hazardous substance restrictions, and is suitable for use in various industrial settings within its specified temperature range.
