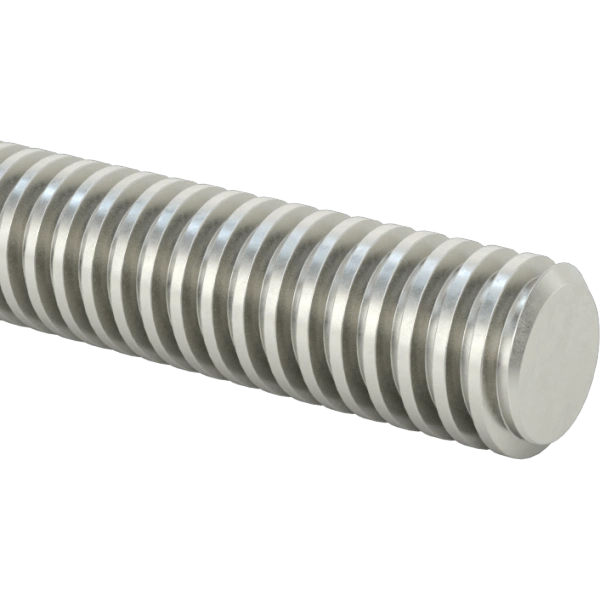

S-7549K1 M10 x 1750 mm DIN 103 Metric Precision Lead Screws and Nuts

Key Features & Benefits at a Glance

• Exceptional precision with ±0.15mm accuracy per 300mm travel, ensuring reliable and repeatable positioning in automated systems.
• Superior strength and durability from 1018 carbon steel construction, offering 70,000 psi tensile strength and Brinell 150 hardness for long service life under heavy loads.
• Optimized motion transfer with a 2mm travel distance per turn and 1:1 speed ratio, providing efficient and predictable linear movement.
• Reliable thread engagement due to the 8e thread fit and single-start Metric Trapezoidal thread profile, minimizing backlash and ensuring smooth operation.
• Full-length utility with a 1750mm fully threaded, right-hand design, offering maximum flexibility for various mounting and application needs.
• Guaranteed interchangeability and performance compliance with the DIN 103 standard, ensuring quality and compatibility in European machinery designs.

Professional Applications & Engineering Value

This M10 metric trapezoidal lead screw is engineered to solve critical challenges in precision motion control systems. The 1018 carbon steel material provides the necessary tensile strength and wear resistance for demanding industrial environments, such as CNC machinery, automated assembly lines, and precision positioning tables. The Metric Trapezoidal thread with a 2mm pitch is specifically designed to handle high axial loads efficiently, while the fully threaded and right-hand configuration allows for versatile integration into complex mechanisms. Its high accuracy (±0.15mm per 300mm) ensures minimal positional error, which is crucial for applications requiring repeatable linear motion, thereby reducing downtime and maintenance costs while enhancing overall system reliability.

Specification Summary & Compliance

This lead screw features an M10x2mm thread size with 8e thread fit accuracy, ensuring precise engagement and minimal play. It is manufactured in compliance with the DIN 103 standard for Metric Trapezoidal threads, guaranteeing dimensional consistency and performance. The component is fully threaded with a right-hand direction and a travel distance of 2mm per turn, supporting reliable operation in various industrial settings. While specific RoHS or REACH declarations are not provided, the material and construction are suitable for general industrial use where such compliance is typically required.
