S-1710K1 1"-4 x 3" Precision Acme Lead Screws and Nuts
Precision Acme Lead Screws and Nuts

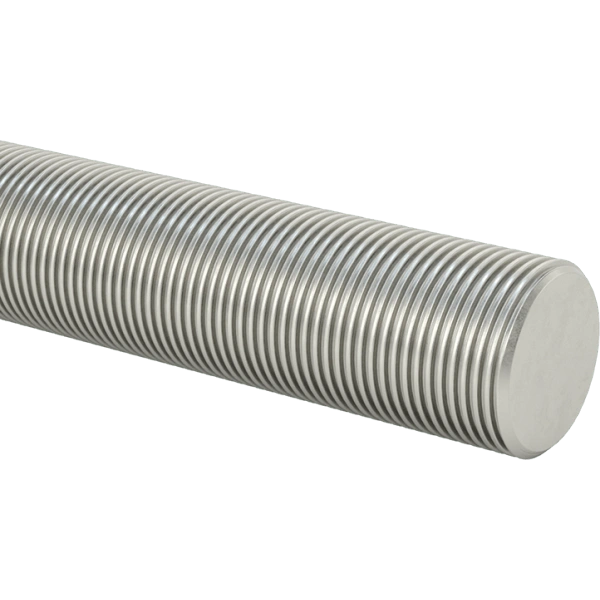

Image may differ from product. See technical specification for details.
Basic Information
Thread Parameters
Dimension Parameters
Lead Screw Specific Parameters
Nut Parameters
Load & Performance Parameters
- Fast delivery
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
Key Features & Benefits at a Glance
- Exceptional load handling with 5000 lbs dynamic thrust capacity for demanding industrial operations
- Superior wear resistance thanks to 932 Bearing Bronze construction with Brinell 65 hardness
- Precision movement control featuring 0.25" travel per turn for accurate positioning applications
- Reliable thread engagement with Class 2C thread fit ensuring consistent performance under load
- Durable platform nut design providing stable mounting and extended service life in heavy-duty environments
- Environmental compliance meeting RoHS 3 and REACH standards for global manufacturing requirements
- Optimized single-start thread delivering smooth right-hand motion with 1:1 speed ratio
Professional Applications & Engineering Value
This 1"-4 ACME threaded bronze nut solves critical engineering challenges in precision motion systems where reliability under heavy loads is paramount. The 932 Bearing Bronze material provides excellent anti-galling properties and wear resistance, significantly reducing maintenance frequency in high-cycle applications. With its Class 2C thread fit and 0.25" travel per turn, this platform nut delivers precise linear motion control for industrial automation, CNC machinery, and heavy-duty positioning systems. The right-hand thread configuration ensures compatibility with standard ACME lead screws while the robust platform nut design offers secure mounting in press machines, lifting equipment, and other demanding industrial applications where 5000 lbs thrust capacity is required.
Specification Summary & Compliance
This precision ACME lead screw nut maintains Class 2C thread fit tolerances according to inch system standards, ensuring proper clearance for smooth operation. The component features 1"-4 ACME thread specifications with single-start configuration and right-hand thread direction. Manufacturing compliance includes RoHS 3 (2015/863/EU) and REACH (EC 1907/2006) environmental standards, making it suitable for global industrial applications. The nut's dimensional specifications include 3" length, 1-15/16" height, and 3" width with 1-1/8" center height for standardized integration into existing systems.
