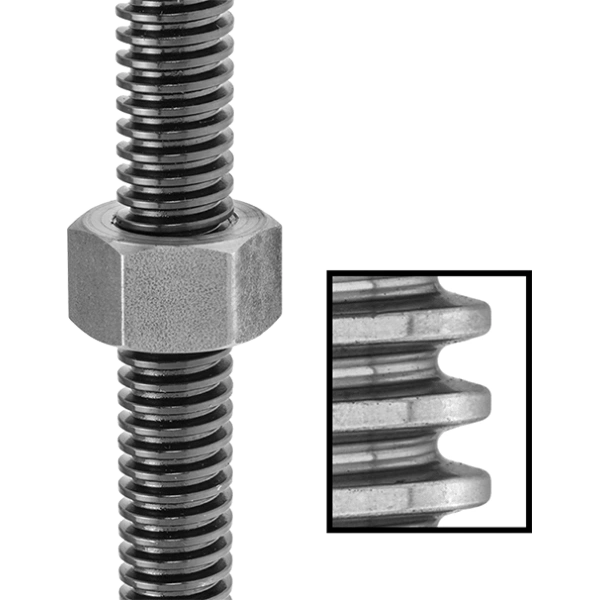

S-94353A160 M16 Metric Lead Screws and Nuts

Key Features & Benefits at a Glance

• Precision linear motion control with 4mm travel per turn for accurate positioning in automated systems
• Durable carbon steel construction (Grade 2) ensures reliable performance and resistance to wear in industrial environments
• Superior thread engagement with 7H thread fit maintains consistent performance and reduces backlash
• Standard metric trapezoidal thread profile provides smooth motion transfer and compatibility with industry-standard lead screws
• Right-hand single-start design offers straightforward installation and predictable motion characteristics
• Hex nut configuration allows for easy installation and removal using standard wrench tools
• Environmental compliance with RoHS 3 and REACH regulations ensures safe use across various industrial sectors

Professional Applications & Engineering Value

This M16 trapezoidal thread hex nut delivers exceptional value in precision motion control systems where accuracy and reliability are paramount. Engineered from Grade 2 carbon steel, the nut provides the necessary durability for continuous operation in industrial automation, CNC machinery, and positioning equipment. The metric trapezoidal thread with 4mm pitch and 7H thread fit ensures minimal play and consistent performance, addressing common challenges of backlash and positioning errors in linear motion applications. The single-start right-hand thread design simplifies system integration while maintaining precise motion transfer. Ideal for applications requiring repeatable linear movement, this nut solves critical engineering pain points by offering predictable performance, easy maintenance, and long service life in demanding industrial environments.

Specification Summary & Compliance

This metric trapezoidal thread hex nut features M16 thread size with 4mm pitch and complies with standard metric trapezoidal thread specifications. The component maintains 7H thread fit tolerance according to ISO standards, ensuring precise engagement with mating components. Manufactured from Grade 2 carbon steel, the nut measures 16mm in height and 27mm across flats for standard tool compatibility. The product is fully compliant with RoHS 3 (2015/863/EU) and REACH (EC 1907/2006) environmental regulations, meeting the latest substance restriction requirements for industrial applications.
