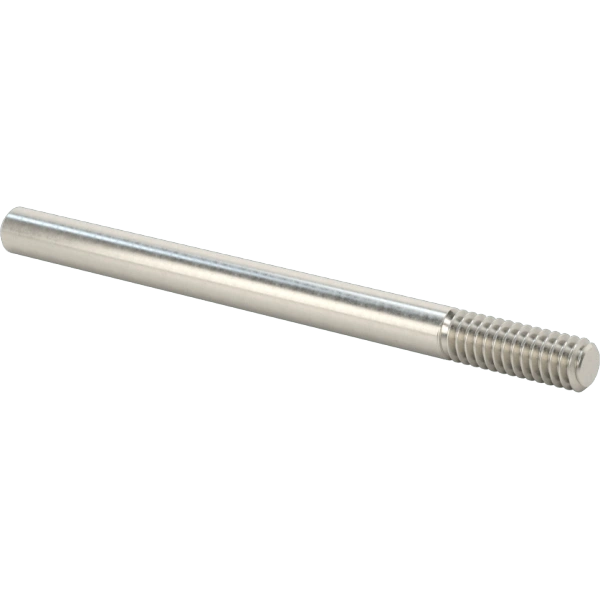

S-97042A145 6-32 x 1" Partially Threaded Studs

Key Features & Benefits at a Glance

• Superior corrosion resistance thanks to 18-8 stainless steel construction, ideal for harsh industrial environments.
• Reliable high-strength performance with a 70,000 psi tensile strength, ensuring secure and durable fastening under load.
• Precise and easy assembly with Class 2A thread fit and UNC coarse threading, providing consistent engagement and reduced cross-threading risk.
• Versatile partial threading design featuring 1/2" threaded length on one end, allowing for adjustable positioning and secure nut retention.
• Broad industrial compliance with RoHS 3 and REACH regulations, ensuring safety and environmental standards are met.
• Optimized for standard inch-system applications with a 6-32 thread size and right-hand thread direction, ensuring compatibility with common components.
• Accurate dimensional control with a shaft diameter tolerance of -0.005" to 0.005", guaranteeing consistent fit and performance.

Professional Applications & Engineering Value

This 18-8 stainless steel partially threaded stud is engineered to address critical challenges in industrial assembly, such as corrosion-induced failure and mechanical instability. Its 6-32 UNC coarse threading and Class 2A thread fit ensure rapid, secure installation in machinery, electronics, and structural frameworks, minimizing assembly time while maximizing joint integrity. The 70000 psi tensile strength provides a reliable safety margin for high-stress applications, from automotive components to HVAC systems. The partial threading design allows for precise adjustment and secure fastening in confined spaces, making it an ideal choice for industrial fasteners requiring both durability and flexibility. Its inherent corrosion resistance reduces maintenance needs, extending service life in demanding environments.

Specification Summary & Compliance

This stud adheres to Class 2A thread fit and UNC threading standards under the inch measurement system, with a shaft diameter of 0.138" and tolerance of -0.005" to 0.005". It is manufactured to meet RoHS 3 (2015/863/EU) and REACH (EC 1907/2006) compliance, ensuring it is free of hazardous substances and suitable for global industrial use.
