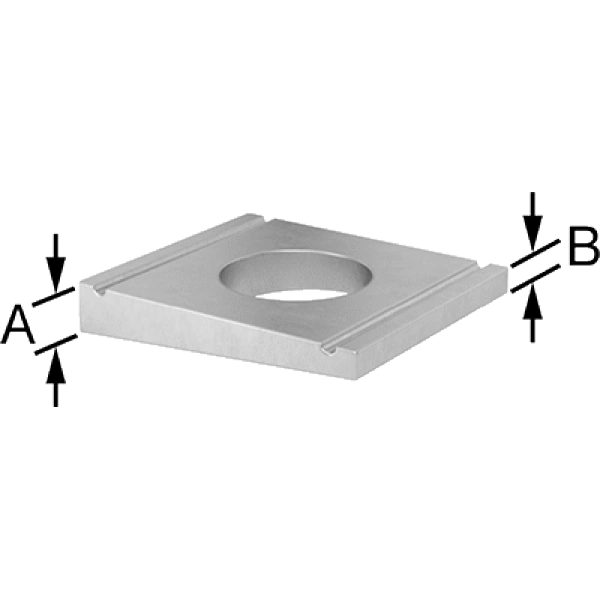

S-92522A130 14 mm ID x 30 mm Long DIN 434 Leveling Washers for U-Channels

Key Features & Benefits at a Glance

• Superior load distribution with tapered design to prevent surface damage and maintain joint integrity under heavy stress
• Enhanced corrosion resistance through zinc-plated steel construction for reliable performance in harsh industrial environments
• Precise dimensional accuracy with 14mm ID and 26mm width ensuring perfect compatibility with M12 fasteners
• Exceptional mechanical strength backed by Rockwell B56 hardness rating for long-term durability and wear resistance
• Guaranteed standardization through full DIN 434 compliance for seamless integration into existing metric systems
• Environmental responsibility with RoHS 3 and REACH compliance meeting strict international regulatory requirements
• Optimized thickness profile (4.9mm to 2.5mm taper) providing progressive compression and vibration resistance

Professional Applications & Engineering Value

This M12 tapered washer delivers critical engineering solutions where standard flat washers fall short. The zinc-plated steel construction combined with the precisely engineered taper profile addresses common industrial challenges including surface marring, joint loosening from vibration, and uneven load distribution. The DIN 434 standardization ensures perfect fitment in metric system applications across heavy machinery, structural steel connections, and automotive assemblies. With its Rockwell B56 hardness, this tapered washer maintains dimensional stability under extreme pressure, while the corrosion-resistant plating extends service life in outdoor or chemically aggressive environments. The progressive thickness from 4.9mm to 2.5mm creates an ideal compression gradient for industrial fasteners requiring precise tension management and permanent seating.

Specification Summary & Compliance

This metric tapered washer features precise dimensional specifications including 14mm inner diameter, 26mm width, and tapered thickness from 4.9mm to 2.5mm. Manufactured to DIN 434 standards for dimensional accuracy and performance consistency. The washer demonstrates full compliance with RoHS 3 (2015/863/EU) and REACH (EC 1907/2006) environmental regulations, ensuring safe use across international markets. Constructed from zinc-plated steel with Rockwell B56 hardness rating, providing reliable mechanical properties for demanding industrial applications.
