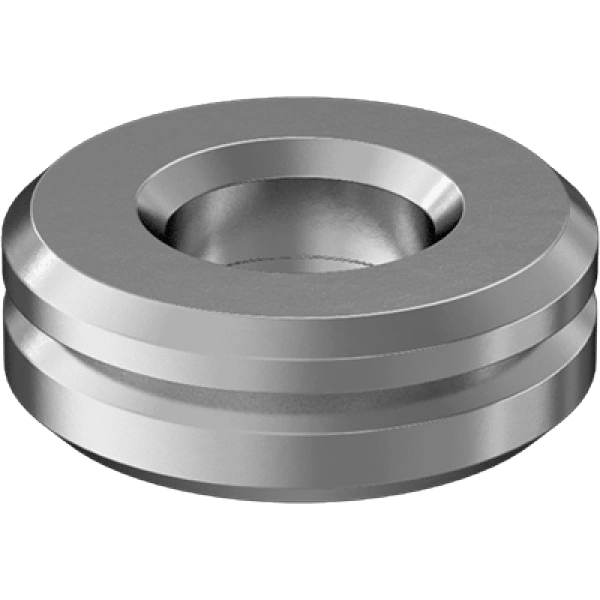

S-94007A034 DIN 6319 Male and Female Leveling Washers
Male and Female Leveling Washers
Image may differ from product. See technical specification for details.
Basic Information
Dimension Parameters
Material & Strength Parameters
Installation & Application Parameters
Finish & Compliance Parameters
Geometric Parameters
- Fast delivery
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
Key Features & Benefits at a Glance
- Precise 3° angular correction ensures optimal alignment in uneven surfaces, reducing stress and preventing fastener failure.
- 18-8 stainless steel construction provides excellent corrosion resistance, ideal for harsh or outdoor industrial environments.
- DIN 6319 standard compliance guarantees dimensional accuracy and interchangeability for reliable metric assembly integration.
- 17mm outer diameter design offers a stable bearing surface, distributing load evenly to protect connected components.
- RoHS 3 and REACH compliance ensures environmental safety and meets stringent international regulatory requirements.
- Metric M8 screw compatibility simplifies sourcing and installation in standard metric fastener systems.
- Durable material hardness maintains shape under pressure for long-term, reliable performance in repetitive applications.
Professional Applications & Engineering Value
Engineered for demanding industrial settings, the M8 DIN 6319 spherical washer addresses common alignment challenges in machinery, structural frameworks, and automotive assemblies. Its 18-8 stainless steel makeup resists rust and chemical exposure, while the spherical design compensates for up to 3° of misalignment, preventing bolt bending and joint fatigue. This metric alignment washer is crucial in applications where surface irregularities exist, such as mounting equipment on uneven bases or aligning structural supports, ensuring secure, long-lasting connections without compromising integrity. By integrating this component, engineers achieve enhanced assembly precision, reduced maintenance costs, and improved safety in corrosive or high-stress environments.
Specification Summary & Compliance
This washer conforms to DIN 6319 specifications, with precise dimensions including Female ID of 9.6mm, Female OD of 17.0mm, Male ID of 8.4mm, Male OD of 17mm, and thickness ranging from 5.1 to 5.8mm. It is designed for M8 screw sizes and supports a maximum correction angle of 3°. The product is compliant with RoHS 3 (2015/863/EU) and REACH (EC 1907/2006), ensuring it meets environmental and safety standards for industrial use.
