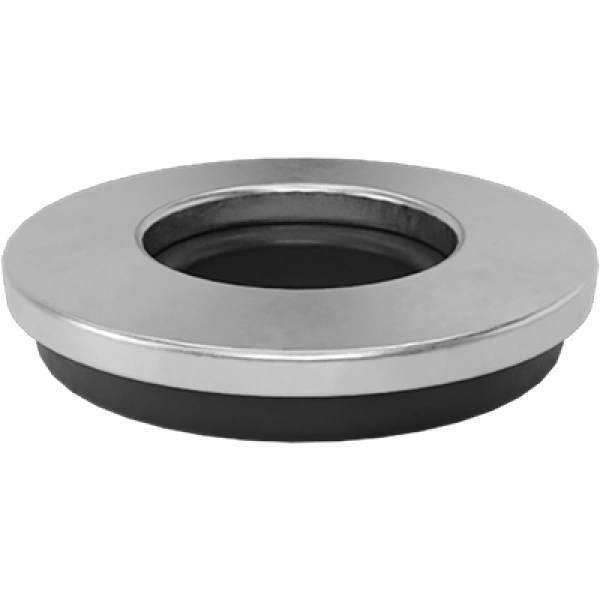

S-91195A105 0.2" ID x 1" OD Washdown Bonded Sealing Washers
Washdown Bonded Sealing Washers
Image may differ from product. See technical specification for details.
Basic Information
Dimension Parameters
Material & Strength Parameters
Temperature & Environment Parameters
Installation & Application Parameters
Finish & Compliance Parameters
Seal Parameters
- Fast delivery
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
Key Features & Benefits at a Glance
- Superior sealing performance with permanently bonded silicone rubber that prevents fluid and gas leakage up to 100 psi
- Exceptional temperature resistance maintains integrity across extreme environments from -100°F to 400°F
- Corrosion-resistant 18-8 stainless steel construction ensures long-term durability in harsh industrial conditions
- Precision fit for No. 10 screws with 0.2" ID and 1" OD dimensions for reliable installation and vibration resistance
- Optimized material hardness combines Rockwell B80 metal strength with Durometer 50A seal flexibility for perfect compression
- Visual seal identification through green silicone coloring enables quick inspection and proper assembly
- Full regulatory compliance meets RoHS 3 and REACH standards for global industrial applications
Professional Applications & Engineering Value
These metal bonded washers solve critical sealing challenges in industrial equipment where temperature fluctuations and pressure variations compromise standard washers. The 18-8 stainless steel base provides structural integrity while the chemically bonded silicone rubber seal creates an impermeable barrier against fluids and gases. Engineered for No. 10 screw applications in hydraulic systems, pneumatic controls, and processing equipment, these washers prevent leakage in connections subjected to thermal cycling from -100°F to 400°F. The bonded construction eliminates seal displacement during installation or vibration, ensuring consistent performance in automotive, aerospace, and manufacturing applications where reliability is paramount.
Specification Summary & Compliance
Precision manufactured to inch system dimensions with 0.2" ID and 1" OD, these washers feature a thickness range of 0.047-0.109" for optimal compression. The assembly combines 18-8 stainless steel with Rockwell B80 hardness and silicone rubber seal with Durometer 50A hardness. Fully compliant with RoHS 3 (2015/863/EU) and REACH (EC 1907/2006) regulations, ensuring environmental safety and material traceability for industrial procurement requirements.
