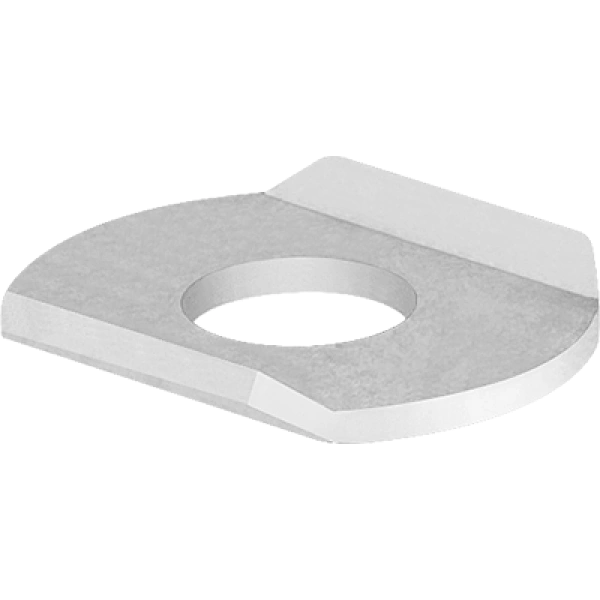

S-5147A42 0.203" ID x 0.563" OD Clamp Holding Washers

Key Features & Benefits at a Glance

• Enhanced load distribution with angled edge design reduces stress concentration and prevents surface damage
• Superior durability from high-quality steel construction ensures long-term performance in demanding applications
• Precise No. 10 screw compatibility (0.203" ID) guarantees secure fastening and prevents loosening
• Optimized dimensions (0.563" OD, 3/8" flat width) provide maximum bearing surface for improved stability
• Consistent performance with exact 0.048" thickness and 0.09" height maintaining uniform pressure distribution
• Environmental compliance meets RoHS 3 and REACH standards for safe use in regulated industries
• Heavy-duty construction delivers reliable performance in high-vibration and high-load environments

Professional Applications & Engineering Value

This steel angled edge washer delivers critical engineering advantages in industrial fastening systems. The angled edge design significantly reduces stress concentration points, preventing material deformation and surface damage commonly encountered with standard flat washers. Manufactured from high-grade steel, this component maintains structural integrity under heavy loads and high vibration conditions typical in machinery assembly, automotive manufacturing, and construction equipment. The precise 0.203" ID ensures perfect compatibility with No. 10 screws, eliminating play and maintaining clamp force integrity. With its 0.563" OD and optimized flat width, it provides superior load distribution across wider surface areas, making it ideal for applications requiring reliable, long-term fastening solutions in demanding industrial environments.

Specification Summary & Compliance

This angled edge washer features precise inch system dimensions including 0.203" internal diameter, 0.563" outer diameter, 0.048" thickness, and 0.09" overall height with 3/8" flat width specifically engineered for No. 10 screw applications. The component is manufactured to exacting quality standards using high-grade steel material and complies with RoHS 3 (2015/863/EU) and REACH (EC 1907/2006) environmental regulations, ensuring safe use across various industrial sectors while maintaining consistent dimensional accuracy and performance reliability.
