S-91358A010 0.657" ID x 1.323" OD ASME B18.2.6; ASTM F959 Type A325 Tension-Indicating Structural Washers
Tension-Indicating Structural Washers

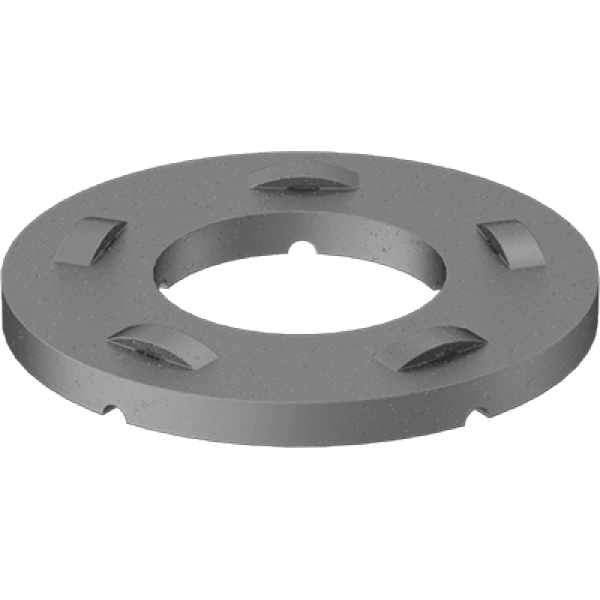

Image may differ from product. See technical specification for details.
Basic Information
Dimension Parameters
Material & Strength Parameters
Installation & Application Parameters
Finish & Compliance Parameters
Special Type Parameters
- Fast delivery
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
Key Features & Benefits at a Glance
- Visual tension verification with orange dye for immediate inspection and reduced assembly errors.
- High load capacity of 19,000 lbs ensures reliable performance in demanding structural applications.
- Rockwell C37 hardness provides excellent durability and resistance to deformation under stress.
- Precise dimensional control (ID: 0.657", OD: 1.323", Thickness: 0.126-0.133") for consistent fit with 5/8" fasteners.
- Compliance with ASME B18.2.6 and ASTM F959 Type A325 guarantees adherence to industry standards for safety and reliability.
- RoHS 3 and REACH compliant for environmentally responsible use in global markets.
- Steel construction offers superior strength and corrosion resistance for long-term service life.
Professional Applications & Engineering Value
This 5/8" tension indicating washer is engineered to solve critical challenges in structural applications where precise bolt tension is mandatory. The orange tension-indicating dye provides a clear visual confirmation that the specified 19,000 lbs load capacity has been achieved, eliminating guesswork and preventing under or over-torquing. Made from high-strength steel with a Rockwell C37 hardness, it maintains integrity under extreme loads, making it ideal for bridges, heavy machinery, and steel frame constructions. Its compliance with ASTM F959 Type A325 and ASME B18.2.6 standards ensures it meets rigorous engineering requirements for safety and performance in industrial washers.
Specification Summary & Compliance
This washer features precise dimensions (ID: 0.657", OD: 1.323", Thickness: 0.126-0.133") for use with 5/8" screw sizes in the inch system. It conforms to ASME B18.2.6 and ASTM F959 Type A325 specifications, ensuring dimensional accuracy and performance reliability. The product is fully compliant with RoHS 3 (2015/863/EU) and REACH (EC 1907/2006) regulations, supporting sustainable and safe industrial use.
