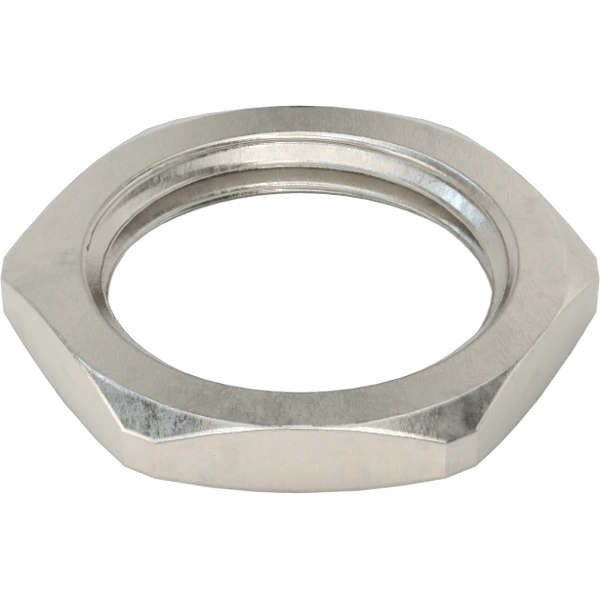

S-94177A120 Panel Nuts

Key Features & Benefits at a Glance

• Thin hex profile allows for installation in tight spaces without compromising strength, ideal for panel applications where clearance is limited.
• NPSM Class 2B thread fit ensures reliable, leak-resistant connections in pipe systems, reducing the risk of fluid or gas leakage.
• External hex drive design provides easy and secure tightening with standard tools, speeding up assembly and maintenance processes.
• Right-hand threading offers straightforward installation and compatibility with common industrial components, minimizing errors during setup.
• RoHS 3 and REACH compliance guarantees safe, environmentally responsible use, meeting strict regulatory standards for hazardous substances.
• Compact 5/8" width and 1/8" height delivers a lightweight yet durable solution, reducing material costs without sacrificing performance.
• Precision-engineered for industrial panels ensures long-term reliability in high-vibration environments, lowering maintenance needs and downtime.

Professional Applications & Engineering Value

This thin hex panel nut is engineered to address common challenges in industrial settings, such as space constraints and the need for leak-proof fastening. Its NPSM thread type and Class 2B fit provide a secure seal in piping and panel applications, preventing failures in systems handling fluids or gases. The external hex drive allows for quick installation with standard wrenches, reducing labor time in assembly lines or maintenance tasks. Made with compliance in mind, it supports RoHS and REACH standards, ensuring it meets environmental regulations without compromising on durability. Ideal for use in electrical enclosures, machinery panels, and fluid control systems, this nut delivers consistent performance where reliability and regulatory adherence are critical.

Specification Summary & Compliance

This panel nut features precise dimensions with a width of 5/8" and height of 1/8", adhering to NPSM thread standards and Class 2B thread fit for accurate, leak-resistant connections. It complies with RoHS 3 (2015/863/EU) and REACH (EC 1907/2006) regulations, ensuring it is free from hazardous substances. The right-hand thread direction and external hex drive are manufactured to industry specifications, supporting reliable performance in various industrial fastening applications.
