S-91705A200 1/4"-20 x 4" ASME B18.6.3 Hanger Bolts
Hanger Bolts

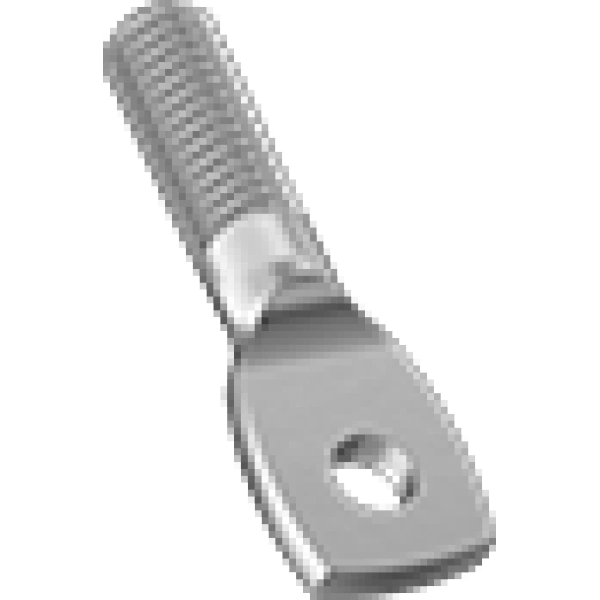

Image may differ from product. See technical specification for details.
Basic Information
Head Parameters
Dimension Parameters
Thread Parameters
Tip & Drive Parameters
Material & Strength Parameters
Installation & Application Parameters
Finish & Compliance Parameters
- Fast delivery
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
Key Features & Benefits at a Glance
- Superior pull-out resistance with 2 1/8" wing span toggle design for maximum holding power in drywall and plaster
- Corrosion-resistant zinc-plated steel construction ensures long-term durability in demanding environments
- Complete assembly convenience with included nut, toggle, and washer for immediate installation
- Precision UNC 1/4"-20 coarse threading with Class 2A/2B fit for secure fastening and easy installation
- Versatile 7/32" eye diameter accommodates various hanging and securing applications
- Optimized 1 5/8" maximum usable length provides reliable anchoring in standard wall materials
- Rockwell B68 hardness rating delivers consistent mechanical strength and wear resistance
Professional Applications & Engineering Value
This heavy-duty toggle eyebolt solves critical anchoring challenges in construction and maintenance applications where traditional fasteners fail. The zinc-plated steel construction combined with the 2 1/8" wing span toggle mechanism creates exceptional pull-out resistance in drywall and plaster substrates, preventing costly wall damage and fixture failures. The partially threaded design with UNC 1/4"-20 coarse threading ensures quick installation while maintaining structural integrity. Engineering professionals value the integrated eye diameter of 7/32" for secure attachment points in HVAC, electrical, and plumbing installations, making it ideal for commercial building applications requiring reliable overhead support.
Specification Summary & Compliance
Manufactured to precise Class 2A screw thread fit and Class 2B toggle thread fit tolerances with UNC coarse threading standards. Complies with ASME B18.6.3 specifications for dimensional accuracy and mechanical performance. Meets RoHS 3 (2015/863/EU) environmental compliance requirements. Designed for use with standard 5/8" diameter holes (0.625") using appropriate drill bits. The Rockwell B68 hardness ensures consistent performance under load conditions.
