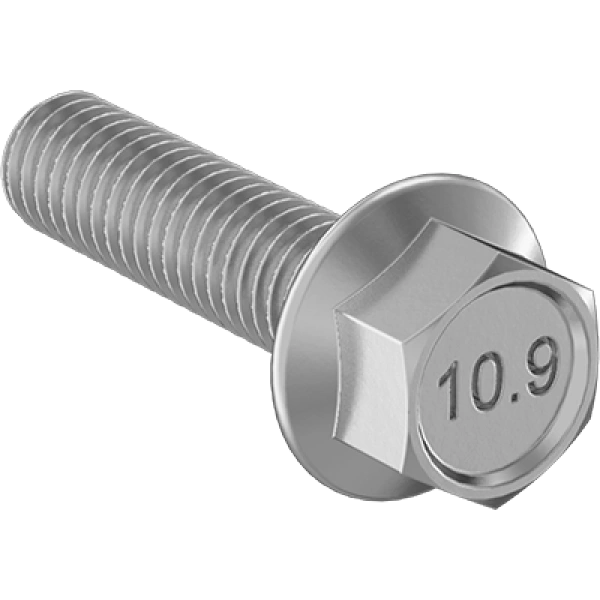

S-95735A111 M10 x 80 mm JIS B 1189 Type 2 JIS High-Strength Steel Flanged Hex Head Screws
JIS High-Strength Steel Flanged Hex Head Screws
Image may differ from product. See technical specification for details.
Basic Information
Head Parameters
Dimensions
Thread Parameters
Tip & Drive Parameters
Material & Strength
Temperature & Environment
- Fast delivery
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
Key Features & Benefits at a Glance
- Exceptional load-bearing capacity with Class 10.9 tensile strength (150,000 PSI) for reliable performance in high-stress applications
- Superior corrosion resistance provided by zinc-plated steel coating, extending service life in harsh industrial environments
- Enhanced vibration resistance through fine 1.25mm pitch threading and Class 6g thread fit for secure, long-lasting fastening
- Easy installation and removal with external hex drive and 14mm head width for standard tool compatibility
- Improved load distribution thanks to the integrated 21mm flange design, reducing surface pressure and material stress
- Optimized thread engagement with partial threading along the 80mm length for precise application-specific fastening
- Global compliance assurance meeting JIS B 1189 Type 2 specifications and environmental standards including RoHS 3 and REACH
Professional Applications & Engineering Value
This M10 hex head screw delivers critical engineering solutions for heavy-duty industrial applications where high tensile strength and reliable fastening are paramount. The zinc-plated steel construction provides essential corrosion protection for machinery, structural frameworks, and equipment exposed to demanding environments. The fine thread metric design (M10x1.25) ensures superior vibration resistance in dynamic applications, while the partially threaded configuration allows for precise clamping force control. The integrated flange eliminates the need for separate washers, streamlining assembly in automotive, construction, and manufacturing applications where space optimization and installation efficiency are critical.
Specification Summary & Compliance
This metric hex head screw features precise M10x1.25 fine threading with Class 6g thread tolerance for consistent fit and performance. Manufactured to JIS B 1189 Type 2 specifications with Class 10.9 strength rating (150,000 PSI tensile strength, Rockwell C32 hardness). The product is fully compliant with RoHS 3 (2015/863/EU) and REACH (EC 1907/2006) environmental standards, ensuring safe use across global industrial markets.
